CompuTec ProcessForce Plugins Installation

This guide explains how to install the CompuTec ProcessForce plugins using the CompuTec AppEngine Administration Panel.

During the installation you will:

• Download the required plugins.
• Install and activate the plugins.
• Install the CompuTec ProcessForce Gantt component.
• Assign a license (new installations only).

Before you start

very important

Complete the following checks before installing or upgrading CompuTec ProcessForce. These steps help prevent installation issues, upgrade failures, and data inconsistencies.

Before installing the plugins, make sure that:

• Your environment meets the CompuTec ProcessForce System Requirements.

• CompuTec AppEngine is installed and configured.

• CompuTec License Server is installed.

• Any custom code in the SP_TransactionNotification and SP_PostTransactionNotice stored procedures is temporarily disabled. Custom code in these procedures can break the upgrade process.

• You increased the ConnectionTimeout and CommandTimeout values in CompuTec AppEngine Administration Panel before the first installation of the CompuTec ProcessForce plugins. Read more

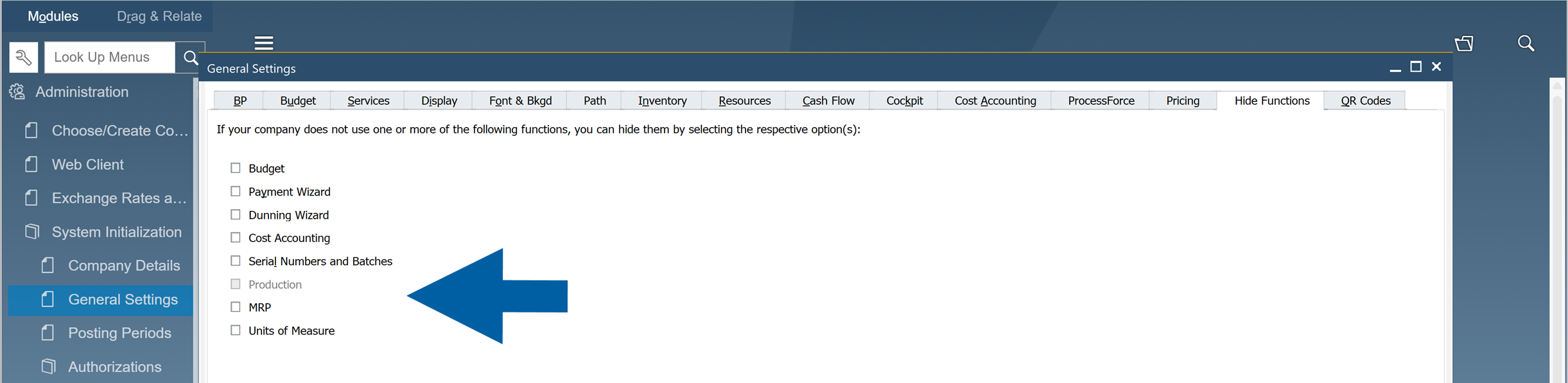

• In SAP Business One, the following options are unchecked under SAP Business One > Administration > System Initialization > General Settings > Hide Functions tab:

  • Serial Numbers and Batches
  • Production
  • Units of Measure



• In SAP Business One > Administration > System Initialization > General Settings > Services, disable Enable Query Validation for both the UI API and DI API.



  note

  CompuTec ProcessForce does not currently support the Enable Query Validation option. If either setting is enabled, you may see an error during the CompuTec ProcessForce installation.

• You restart the SAP Business One client before beginning the installation.

Step 1: Install the plugins

The installation consists of the following plugins:

• CompuTec ProcessForce Plugin – Provides the core manufacturing functionality of CompuTec ProcessForce.
• CompuTec ProcessForce API Plugin – Supports backend communication and integration services. This plugin is installed automatically as a dependency of the CompuTec ProcessForce plugin.
• CompuTec ProcessForce UI Plugin – Adds the desktop user interface for the SAP Business One Desktop Client. Install this plugin only if you use the SAP Business One Desktop Client or you are upgrading from CompuTec ProcessForce 2.0.

To install the CompuTec ProcessForce plugins, follow these steps:

1. Log in to CompuTec AppEngine Administration Panel.

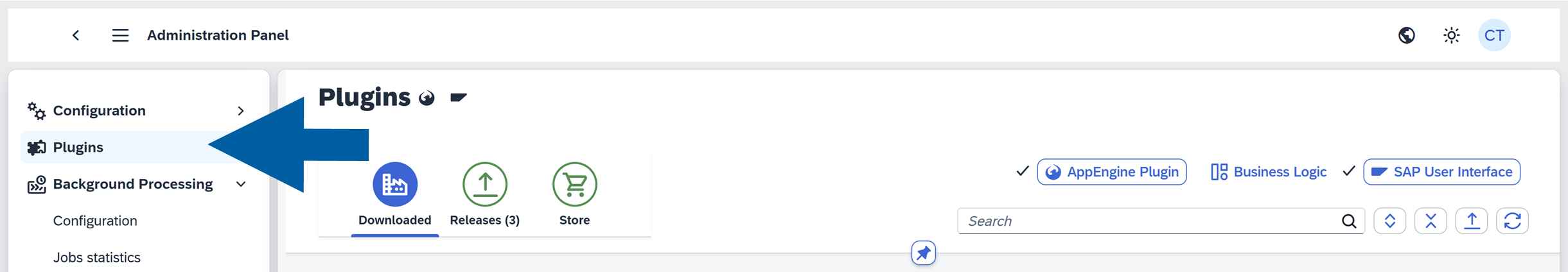

2. Navigate to Plugins.



3. Go to the Store tab.



4. Locate the following two CompuTec ProcessForce plugins:

   • CompuTec.ProcessForce.API
   • CompuTec.ProcessForce.Plugin

5. Install them by following the CompuTec AppEngine Plugin Installation Guide instructions.

   Important

   • The CompuTec ProcessForce API plugin is required by CompuTec ProcessForce is installed automatically.
   • If you use SAP Business One Desktop Client, or you are upgrading from CompuTec ProcessForce 2.0, install CompuTec ProcessForce UI plugin as well.

Step 2: Install the CompuTec ProcessForce Gantt component

After the installation, follow thses steps:

1. Log in to your SAP Business One client.

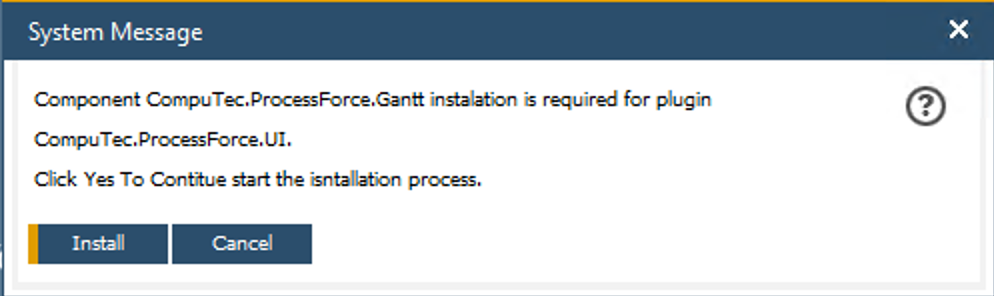

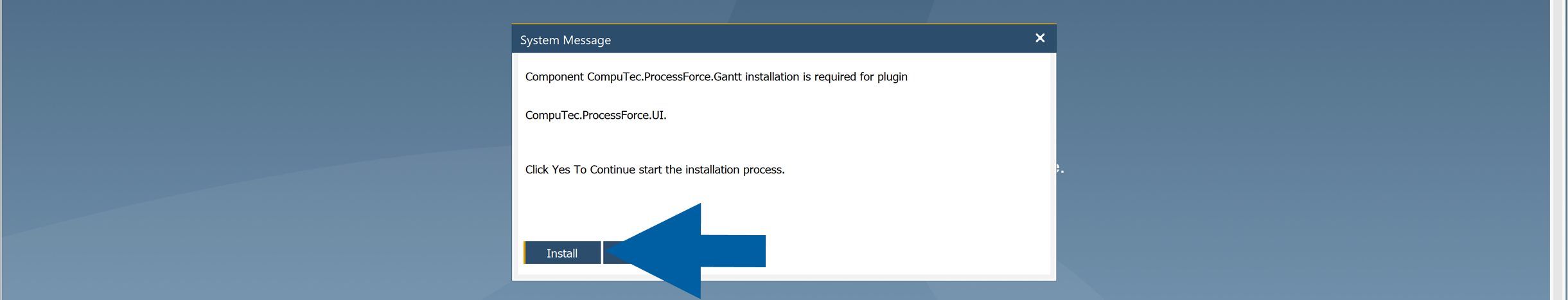

2. The system will prompt you to install CompuTec.ProcessForce.Gantt on your local machine.

3. Click Install to begin the installation.



   note

   If a permission error message appears:

   • Close SAP Business One.

   • Right-click the SAP Business One shortcut.

   • Select Run as administrator.

   • When prompted, install CompuTec.ProcessForce.Gantt.

   In most cases, this resolves the issue immediately.

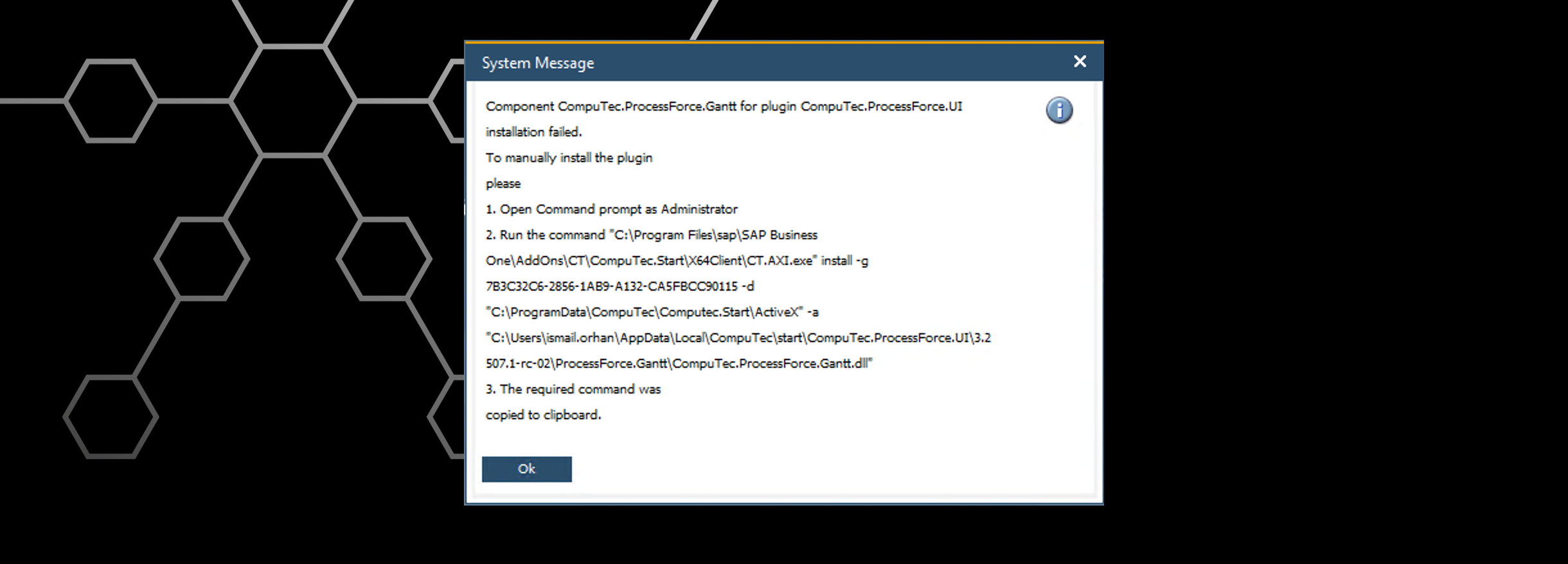

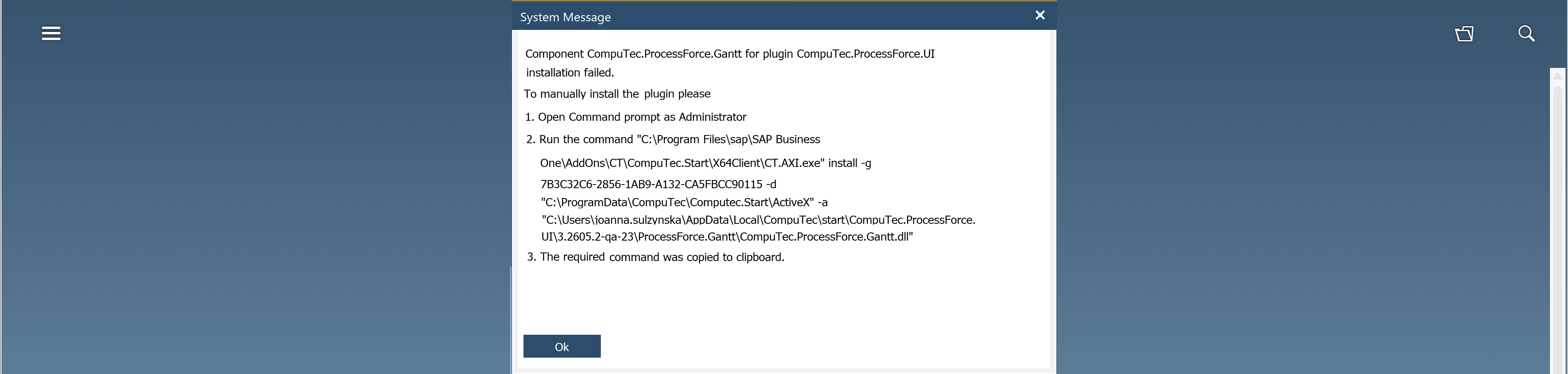

   If the installation still fails, the system will display a system message with a command for manual installation.



   To install the component manually:

   • Open Command Prompt as Administrator.
   • Paste the command provided in the error message (it is automatically copied to the clipboard).
   • Press Enter and wait for the process to complete.
   • After the command finishes successfully, restart SAP Business One.

Step 3: Assign the license

info

This step is required only for new installations. If you are upgrading an existing installation, continue to the next section.

To assign the license, follow the License Import and Assignment guide.

After the installation

Restore existing data

If you are installing CompuTec ProcessForce in a database that already contains data, restore the existing CompuTec ProcessForce data.

important

Before restoring the data, verify that the Manage Item Cost per Warehouse setting is configured correctly. Changing this setting after the restoration requires you to remove and restore all Item Costing data again.

To restore the existing data, follow these steps:

1. Open SAP Business One.

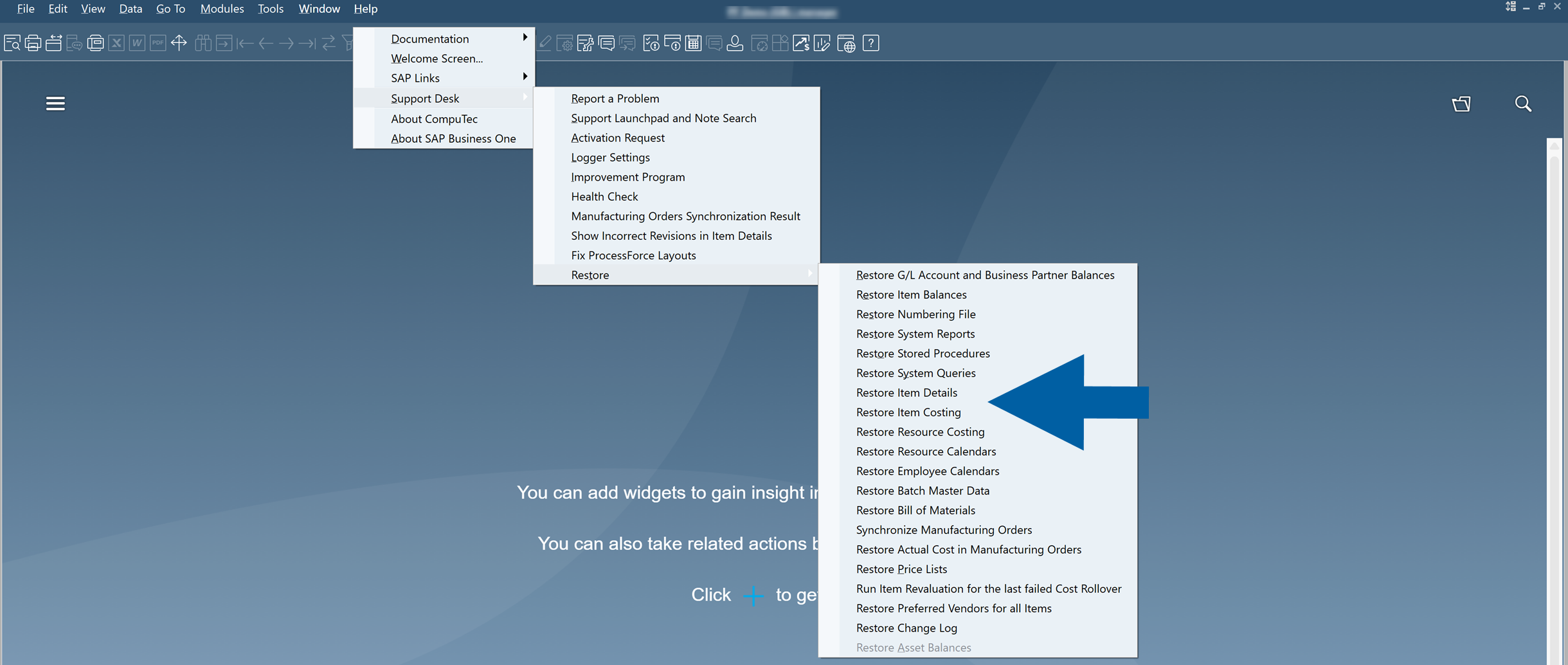

2. Navigate to Help > Support Desk > Restore.

3. Run the following restoration procedures:

   • Restore Item Details
   • Restore Item Costing
   • Restore Resource Costing
   • Restore Employee Calendars
   • Restore Batch Details



For detailed instructions, see Restore Existing Data.

Creating new company databases

To create a new company database, follow these steps:

1. Create a new company database.
2. Install CompuTec ProcessForce.
3. Transfer the required data by using CompuTec ProcessForce Integration (PFI) instead of database copy methods.

important

Do not use Copy Express or the options Copy User-Defined Fields and Tables / Copy User-Defined Objects in the Create New Company wizard to copy CompuTec ProcessForce objects.

Because of a limitation in SAP Business One, these methods can leave EditType fields uninitialized, causing incorrect behavior.

Result

After completing these steps:

• CompuTec ProcessForce is installed.
• The required plugins are active.
• The CompuTec.ProcessForce.Gantt component is installed.
• The license is assigned (new installations).
• The system is ready for configuration and use.

important

The CompuTec ProcessForce plugins are tightly connected with SAP Business One production and costing functions. Because of this, proper configuration and installation are essential.

Skipping prerequisite checks, using copy methods, or failing to assign licenses correctly can lead to malfunctioning UIs, missing data, or incorrect system behavior.
