REST/OData API Documentation

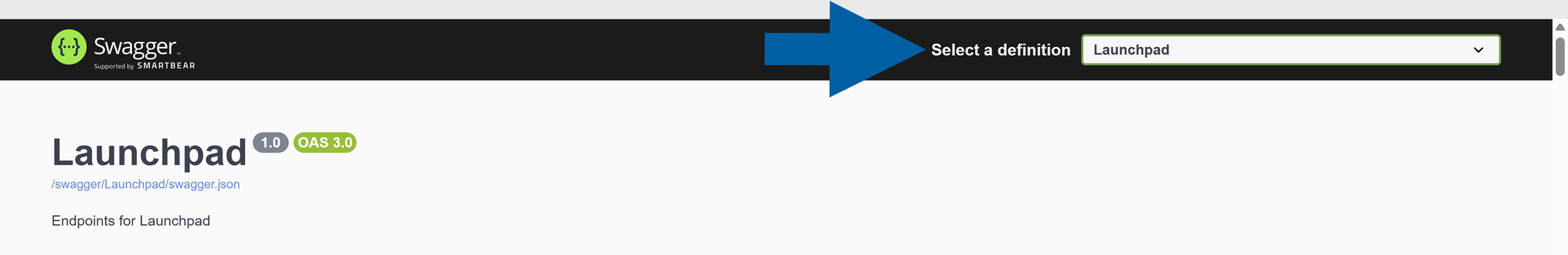

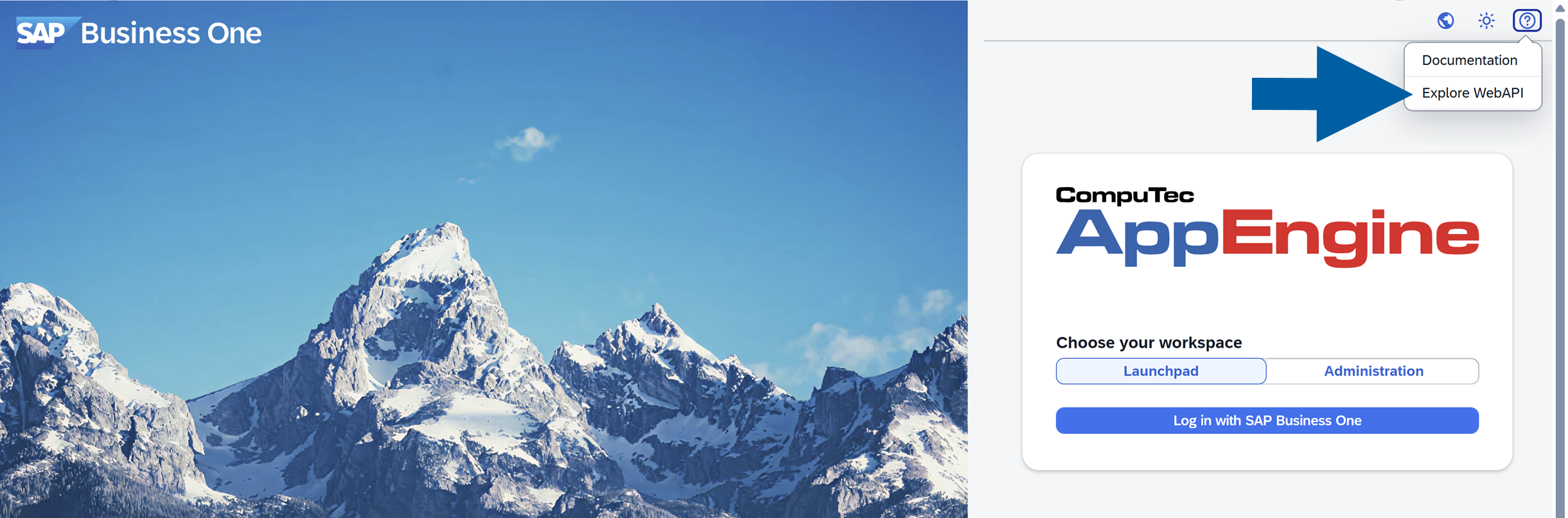

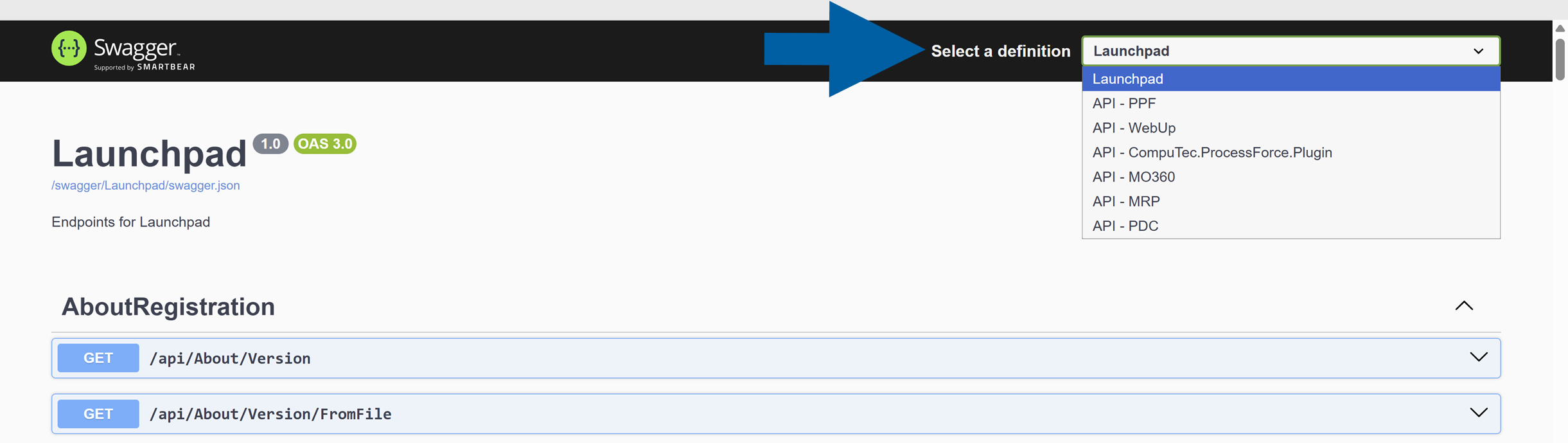

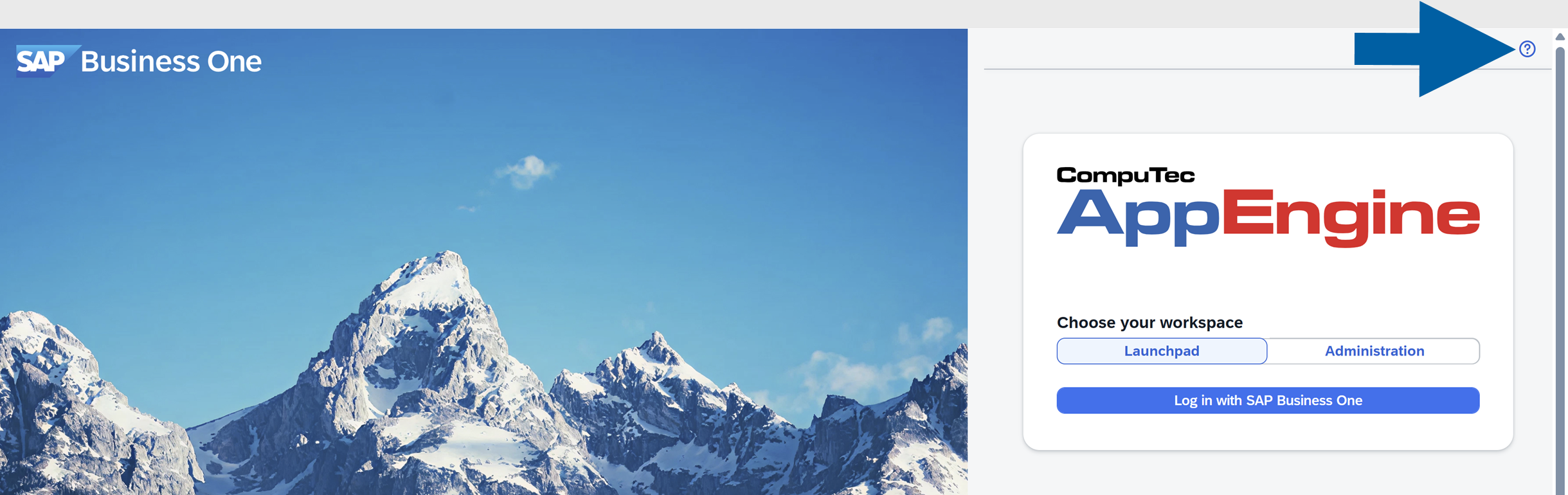

On-demand REST/OData API Swagger documentation is generated by choosing the API documentation panel in the main menu:

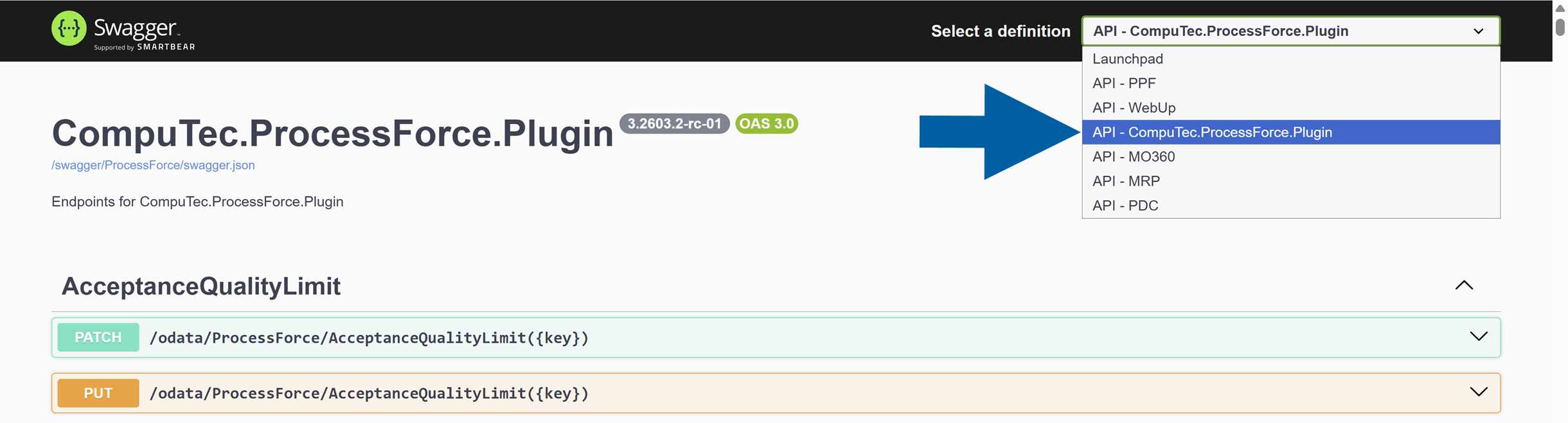

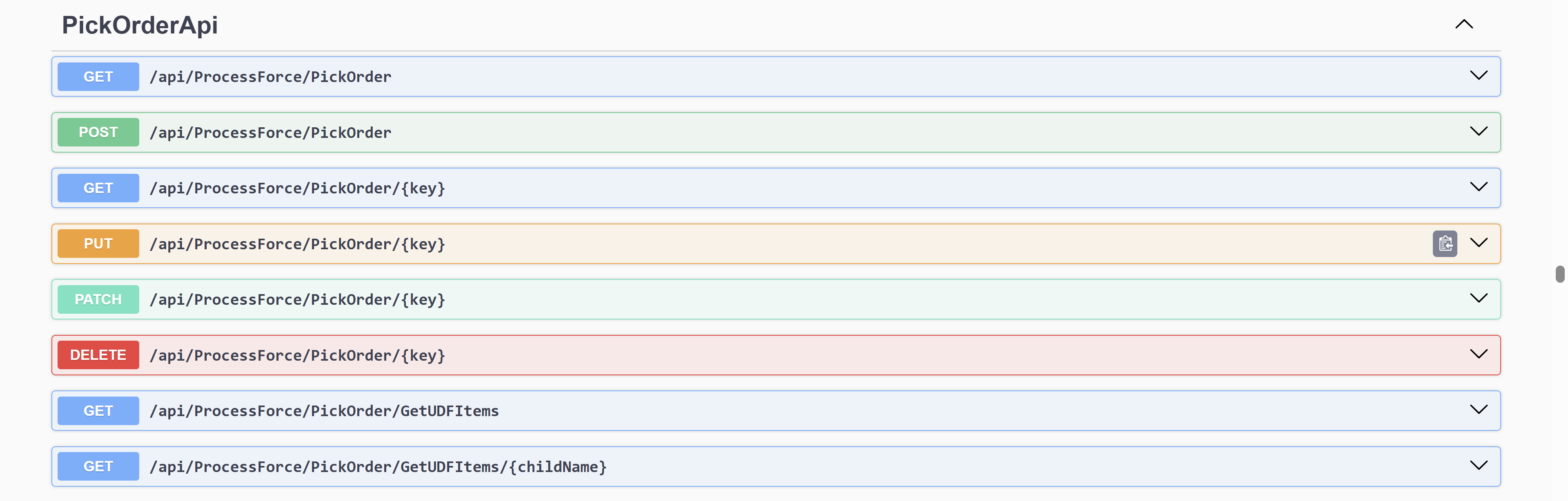

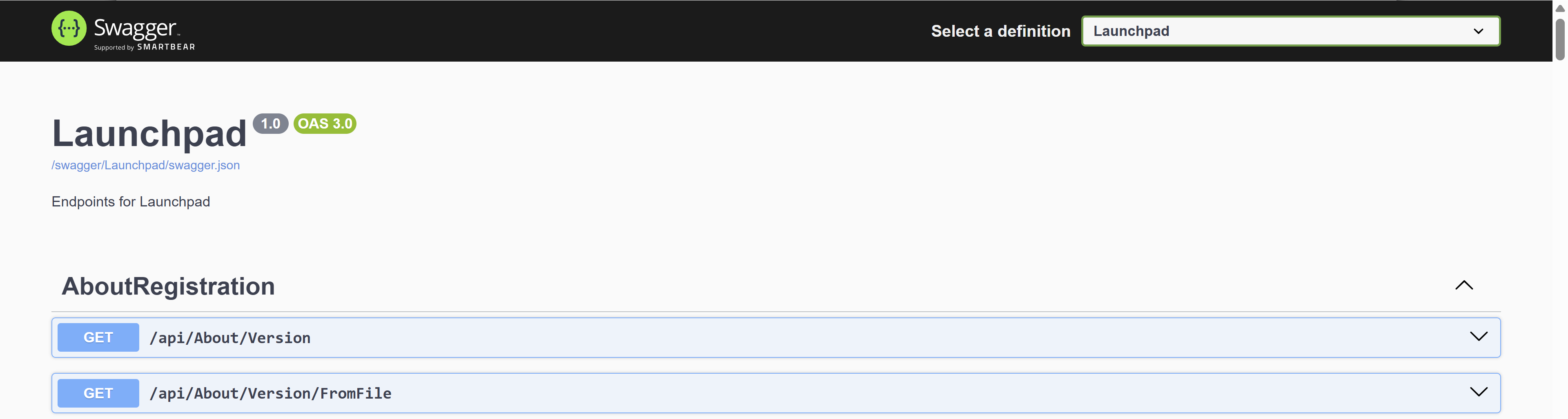

An example view of the documentation:
API usage examples in Postman:
Click here to expand
{
"variables": [],
"info": {
"name": "CompuTec.AppEngine",
"_postman_id": "b4fb57ad-e22b-d07a-dada-58b2e6789546",
"description": "",
"schema": "https://schema.getpostman.com/json/collection/v2.0.0/collection.json"
},
"item": [
{
"name": "Login - OAuth2 [Token]",
"request": {
"url": "http://localhost:54000/Token",
"method": "POST",
"header": [
{
"key": "Content-Type",
"value": "application/x-www-form-urlencoded; charset=utf-8",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "grant_type=password&username=manager&password=1234&serverInstance=PLZG001&companySchema=PFDemoGB"
},
"description": ""
},
"response": []
},
{
"name": "Login - OAuth2 [Cookie]",
"request": {
"url": "http://localhost:54000/api/Login",
"method": "POST",
"header": [
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "{\r\n \"ServerInstance\": \"PLZG001\",\r\n \"CompanySchema\": \"PFDemoGB\",\r\n \"UserName\": \"manager\",\r\n \"Password\": \"1234\",\r\n \"Language\": \"ln_English_Gb\"\r\n}"
},
"description": ""
},
"response": []
},
{
"name": "ManufacturingOrder - GET [Token]",
"event": [
{
"listen": "test",
"script": {
"type": "text/javascript",
"exec": [
"pm.test(\"Status code is 200\", function () {",
" pm.response.to.have.status(200);",
"});",
"pm.test(\"Object expected\", function () {",
" var jsonData = pm.response.json();",
" pm.expect(jsonData[0].Object).to.eql(\"CT_PF_ManufacOrd\");",
"});",
"pm.test(\"Object count\", function () {",
" var jsonData = pm.response.json();",
" pm.expect(jsonData.length).to.be.at.least(0);",
"});"
]
}
}
],
"request": {
"url": "http://localhost:54000/api/ProcessForce/ManufacturingOrder",
"method": "GET",
"header": [
{
"key": "Authorization",
"value": "Bearer AQAAANCMnd8BFdERjHoAwE_Cl-sBAAAA9a7SAWGZMEONqxE-pdwbuwAAAAACAAAAAAADZgAAwAAAABAAAADjQ4JvgwwizdEgTWQPeY_OAAAAAASAAACgAAAAEAAAAL6TwipiIKBNjnVwjlHu2aLgAAAA3--ZhW2M4bROXYug5eV-rzLtnaxOkTSZ1IciPfMFSDLJixhwLtk-eYKN017cYDbtxO-wMfxM5vv-vVMIGzWwL_ndUQbdsUA1B_imzsiligem5Q5-NRS2MP7ae5TURykAqg1QhnMcKIhhYZ23UKq1DIKl2vYy1BwwdHJ0uCU-IXI_RlJzHhT-FOYc5n2HQQEvqELmfUQmmsnpuBxgvzjJTLJjt2_4A928fhOPh4cwbMqe3_GgUJpVqJXQoDfvxS2Qf7fdYYb5XjJkrKy_DZHaKs9gHG-mFYip2-9ufkqWsh8UAAAA-xi_H4ZlxSx7UYep3yp3RGdpyP4",
"description": ""
},
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": ""
},
"description": ""
},
"response": []
},
{
"name": "ManufacturingOrder - GET [Cookie]",
"event": [
{
"listen": "test",
"script": {
"type": "text/javascript",
"exec": [
"pm.test(\"Status code is 200\", function () {",
" pm.response.to.have.status(200);",
"});",
"pm.test(\"Object expected\", function () {",
" var jsonData = pm.response.json();",
" pm.expect(jsonData[0].Object).to.eql(\"CT_PF_ManufacOrd\");",
"});",
"pm.test(\"Object count\", function () {",
" var jsonData = pm.response.json();",
" pm.expect(jsonData.length).to.be.at.least(0);",
"});"
]
}
}
],
"request": {
"url": "http://localhost:54000/api/ProcessForce/ManufacturingOrder",
"method": "GET",
"header": [
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": ""
},
"description": ""
},
"response": []
},
{
"name": "ManufacturingOrder - PATCH",
"event": [
{
"listen": "test",
"script": {
"type": "text/javascript",
"exec": [
"pm.test(\"Status code is 200\", function () {",
" pm.response.to.have.status(200);",
"});"
]
}
}
],
"request": {
"url": "http://localhost:54000/api/ProcessForce/ManufacturingOrder/1",
"method": "PATCH",
"header": [
{
"key": "Authorization",
"value": "Bearer AQAAANCMnd8BFdERjHoAwE_Cl-sBAAAA9a7SAWGZMEONqxE-pdwbuwAAAAACAAAAAAADZgAAwAAAABAAAADjQ4JvgwwizdEgTWQPeY_OAAAAAASAAACgAAAAEAAAAL6TwipiIKBNjnVwjlHu2aLgAAAA3--ZhW2M4bROXYug5eV-rzLtnaxOkTSZ1IciPfMFSDLJixhwLtk-eYKN017cYDbtxO-wMfxM5vv-vVMIGzWwL_ndUQbdsUA1B_imzsiligem5Q5-NRS2MP7ae5TURykAqg1QhnMcKIhhYZ23UKq1DIKl2vYy1BwwdHJ0uCU-IXI_RlJzHhT-FOYc5n2HQQEvqELmfUQmmsnpuBxgvzjJTLJjt2_4A928fhOPh4cwbMqe3_GgUJpVqJXQoDfvxS2Qf7fdYYb5XjJkrKy_DZHaKs9gHG-mFYip2-9ufkqWsh8UAAAA-xi_H4ZlxSx7UYep3yp3RGdpyP4",
"description": ""
},
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "{\n\n \"U_ItemCode\": \"Active-Item-01\",\n \"U_Description\": \"Active-Item-01\",\n \"U_Revision\": \"code00\",\n \"U_RevisionName\": \"code00\",\n \"U_Remarks\": \"ManufacturingOrder POSTED 00001 patched\",\n \n \"Items\": [\n {\n \"U_Remarks\": \"Item patched 2\",\n \"U_LineNum\": 2\n },\n {\n \"U_Remarks\": \"Item patched 3\",\n \"U_LineNum\": 3\n }\n \n ]\n}"
},
"description": ""
},
"response": []
},
{
"name": "BillOfMaterial [Odata query filter - 'contains']",
"request": {
"url": {
"raw": "http://localhost:54000/odata/ProcessForce/BillOfMaterial?$filter=contains(U_ItemCode,'Prod')",
"protocol": "http",
"host": [
"localhost"
],
"port": "54000",
"path": [
"odata",
"ProcessForce",
"BillOfMaterial"
],
"query": [
{
"key": "$filter",
"value": "contains(U_ItemCode,'Prod')",
"equals": true,
"description": ""
}
],
"variable": []
},
"method": "GET",
"header": [],
"body": {},
"description": ""
},
"response": []
},
{
"name": "BillOfMaterial [Odata query filter - 'endswith']",
"request": {
"url": {
"raw": "http://localhost:54000/odata/ProcessForce/BillOfMaterial?$filter=endswith(U_ItemCode, '-A')",
"protocol": "http",
"host": [
"localhost"
],
"port": "54000",
"path": [
"odata",
"ProcessForce",
"BillOfMaterial"
],
"query": [
{
"key": "$filter",
"value": "endswith(U_ItemCode, '-A') ",
"equals": true,
"description": ""
}
],
"variable": []
},
"method": "GET",
"header": [],
"body": {},
"description": ""
},
"response": []
},
{
"name": "BillOfMaterial [Odata query filter - 'substring']",
"request": {
"url": {
"raw": "http://localhost:54000/odata/ProcessForce/BillOfMaterial?$filter=endswith(U_ItemCode, '-A')",
"protocol": "http",
"host": [
"localhost"
],
"port": "54000",
"path": [
"odata",
"ProcessForce",
"BillOfMaterial"
],
"query": [
{
"key": "$filter",
"value": "endswith(U_ItemCode, '-A') ",
"equals": true,
"description": ""
}
],
"variable": []
},
"method": "GET",
"header": [],
"body": {},
"description": ""
},
"response": []
},
{
"name": "SqlQuery",
"request": {
"url": "http://localhost:54000/api/SqlQuery",
"method": "POST",
"header": [
{
"key": "Authorization",
"value": "Bearer AQAAANCMnd8BFdERjHoAwE_Cl-sBAAAA9a7SAWGZMEONqxE-pdwbuwAAAAACAAAAAAADZgAAwAAAABAAAAB1skCOFM4_ODLFQygm5OdYAAAAAASAAACgAAAAEAAAAKSZPcKsZeKa4c4VXaJ53E_gAAAAiygjvGFSJjObxZGDMiEAiB4OPAJth27gffTOs9XA1AGNgFiqZSfsjgQ5dcfRNeotOvsXwp8Y8oUQ8C31FLr6Z9ULW_QUTXEUswYePUT_9xMXOfPEWUdPPEhausvl7hBIz-9aI2a19bYsYkMBFrQgcz2dRMuWv-EgM8KmYEvHlQ-dBgn7ThBmefHVdg4onuy4718Cyhap9U2Q26n64v5Q2X5KLla5ST7igh0jO7JwaxM11fo0HSQLp6AUhApT5-Tj7JNsuxCt57ImoX2AQgnB1tdlXPSPTMUYz_BqYJ9wTTgUAAAAzS5nuf-jfaowCQh3Y-0_f4lQ09A",
"description": ""
},
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "{\r\n \"Query\": \"select * from OITM\",\r\n \"Parameters\": {}\r\n}"
},
"description": ""
},
"response": []
},
{
"name": "BillOfMaterial - GET",
"request": {
"url": "http://localhost:54000/api/ProcessForce/BillOfMaterial",
"method": "GET",
"header": [
{
"key": "Authorization",
"value": "Bearer AQAAANCMnd8BFdERjHoAwE_Cl-sBAAAA9a7SAWGZMEONqxE-pdwbuwAAAAACAAAAAAADZgAAwAAAABAAAADjQ4JvgwwizdEgTWQPeY_OAAAAAASAAACgAAAAEAAAAL6TwipiIKBNjnVwjlHu2aLgAAAA3--ZhW2M4bROXYug5eV-rzLtnaxOkTSZ1IciPfMFSDLJixhwLtk-eYKN017cYDbtxO-wMfxM5vv-vVMIGzWwL_ndUQbdsUA1B_imzsiligem5Q5-NRS2MP7ae5TURykAqg1QhnMcKIhhYZ23UKq1DIKl2vYy1BwwdHJ0uCU-IXI_RlJzHhT-FOYc5n2HQQEvqELmfUQmmsnpuBxgvzjJTLJjt2_4A928fhOPh4cwbMqe3_GgUJpVqJXQoDfvxS2Qf7fdYYb5XjJkrKy_DZHaKs9gHG-mFYip2-9ufkqWsh8UAAAA-xi_H4ZlxSx7UYep3yp3RGdpyP4",
"description": ""
},
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": ""
},
"description": ""
},
"response": []
},
{
"name": "BillOfMaterial - PATCH Odata",
"request": {
"url": "http://localhost:54000/odata/ProcessForce/BillOfMaterial('00000001')",
"method": "PATCH",
"header": [
{
"key": "Authorization",
"value": "Bearer AQAAANCMnd8BFdERjHoAwE_Cl-sBAAAA9a7SAWGZMEONqxE-pdwbuwAAAAACAAAAAAADZgAAwAAAABAAAADjQ4JvgwwizdEgTWQPeY_OAAAAAASAAACgAAAAEAAAAL6TwipiIKBNjnVwjlHu2aLgAAAA3--ZhW2M4bROXYug5eV-rzLtnaxOkTSZ1IciPfMFSDLJixhwLtk-eYKN017cYDbtxO-wMfxM5vv-vVMIGzWwL_ndUQbdsUA1B_imzsiligem5Q5-NRS2MP7ae5TURykAqg1QhnMcKIhhYZ23UKq1DIKl2vYy1BwwdHJ0uCU-IXI_RlJzHhT-FOYc5n2HQQEvqELmfUQmmsnpuBxgvzjJTLJjt2_4A928fhOPh4cwbMqe3_GgUJpVqJXQoDfvxS2Qf7fdYYb5XjJkrKy_DZHaKs9gHG-mFYip2-9ufkqWsh8UAAAA-xi_H4ZlxSx7UYep3yp3RGdpyP4",
"description": ""
},
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "{\n\t\n \"U_ItemCode\": \"Product-A\",\n \"U_Revision\": \"code00\",\n\t\"U_Quantity\": 100\n}"
},
"description": ""
},
"response": []
},
{
"name": "BillOfMaterial/Items - PATACH Odata",
"request": {
"url": "http://localhost:54000/odata/ProcessForce/BillOfMaterial('00000001')/Items(1)",
"method": "PATCH",
"header": [
{
"key": "Authorization",
"value": "Bearer AQAAANCMnd8BFdERjHoAwE_Cl-sBAAAA9a7SAWGZMEONqxE-pdwbuwAAAAACAAAAAAADZgAAwAAAABAAAADjQ4JvgwwizdEgTWQPeY_OAAAAAASAAACgAAAAEAAAAL6TwipiIKBNjnVwjlHu2aLgAAAA3--ZhW2M4bROXYug5eV-rzLtnaxOkTSZ1IciPfMFSDLJixhwLtk-eYKN017cYDbtxO-wMfxM5vv-vVMIGzWwL_ndUQbdsUA1B_imzsiligem5Q5-NRS2MP7ae5TURykAqg1QhnMcKIhhYZ23UKq1DIKl2vYy1BwwdHJ0uCU-IXI_RlJzHhT-FOYc5n2HQQEvqELmfUQmmsnpuBxgvzjJTLJjt2_4A928fhOPh4cwbMqe3_GgUJpVqJXQoDfvxS2Qf7fdYYb5XjJkrKy_DZHaKs9gHG-mFYip2-9ufkqWsh8UAAAA-xi_H4ZlxSx7UYep3yp3RGdpyP4",
"description": ""
},
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "{\r\n \"U_Quantity\": 0\r\n}"
},
"description": ""
},
"response": []
},
{
"name": "ItemDetails - Add Revision [Odata]",
"request": {
"url": "http://localhost:54000/odata/ProcessForce/ItemDetails('00000002')/Revisions",
"method": "POST",
"header": [
{
"key": "Content-Type",
"value": "application/json",
"description": ""
}
],
"body": {
"mode": "raw",
"raw": "{\r\n \"U_Code\": \"code06\",\r\n \"U_ParentItemCode\": \"Product-A\",\r\n \"U_Description\": \"default\",\r\n \"U_Status\": \"Active\",\r\n \"U_Default\": \"Yes\",\r\n \"U_IsCostingDefault\": \"Yes\",\r\n \"U_IsMrpDefault\": \"Yes\",\r\n \"U_MatPhantom\": \"No\"\r\n}"
},
"description": ""
},
"response": []
}
]
}
Steps to Create Pick Order or Pick Receipt using webAPI Calls
-
Create pick order or pick receipt through webAPI requires 2 steps:
- Create an empty document by calling the end point /ProcessForce/CreatePickOrderForProductionIssue and /ProcessForce/CreatePickReceiptForProductionReceipt respectively using method "POST"
- Update the created document with necessary details using patch
-
Create pick order for operation requires user to set operation details while creating document using the below request template
{"IssueType":"Operations","LineNumbers": {"<MO DocNum>": [
<U_LineNum of the operation from @CT_PF_MOR12 table>
]
},"ManufacturingOrderDocEntries":
[ "<MO DocNum>"]
}
