Installation Overview

This guide provides an overview of the installation process for CompuTec WMS 2.0 and CompuTec WMS 3.0.

The installation process differs depending on the version you are using. Select your version below and complete the steps in the order shown.

important

Support for CompuTec WMS 2.0 will end soon. We recommend planning your upgrade to CompuTec WMS 3.0 Plugin to continue receiving regular support and maintenance updates.

CompuTec WMS 2.0

CompuTec WMS 2.0

Complete the following steps to install and configure CompuTec WMS 2.0.

Before you start

Before you start, review the CompuTec WMS requirements and make sure your environment meets the requirements for your WMS version.

Step 1: Download and install CompuTec WMS Server

1. Download the CompuTec WMS Server installation package from CompuTec WMS Downloads.

2. Install and configure the CompuTec WMS Server.

   info

   For detailed instructions, see the WMS Server Installation Guide

Step 2: Install CompuTec ProcessForce API, if required

If CompuTec ProcessForce is installed in the SAP Business One environment, you must also install the CompuTec ProcessForce API.

CompuTec WMS detects that CompuTec ProcessForce is installed and requires the CompuTec ProcessForce API to communicate with it correctly.

Download the appropriate API installation package from CompuTec ProcessForce 2.0 Downloads.

Note

If CompuTec ProcessForce is not installed in your environment, you can skip this step.

Step 3: Configure CompuTec WMS licensing

Configure the required CompuTec WMS licenses and assign them according to your environment.

info

For detailed instructions, see WMS Licensing.

Step 4: Install CompuTec WMS Client

Download and install CompuTec WMS Client on the devices that will be used for warehouse operations.

info

For detailed instructions, see Download CompuTec WMS Client.

Step 5: Configure CompuTec WMS Client

Connect the CompuTec WMS Client to the CompuTec WMS Server and configure the required client settings.

info

For detailed instructions, see Configure CompuTec WMS Client.

CompuTec WMS 3.0 Plugin

CompuTec WMS 3.0

CompuTec WMS 3.0 uses CompuTec AppEngine for its plugin-based components.

Before you start

Before start:

• Review the CompuTec WMS requirements
• Make sure CompuTec AppEngine is installed and configured. Read more
• Make sure you have access to the CompuTec AppEngine Administration Panel.
• Make sure at least one CompuTec AppEngine instance is configured and active.
• Make sure you have the required SAP Business One and system administrator permissions.

If you use CompuTec ProcessForce, additional components may be required. See the relevant installation instructions before continuing.

Step 1: Install the CompuTec WMS 3.0 Plugin

To install and activate a CompuTec AppEngine WMS 3.0 plugin, follow these steps:

1. Log in to CompuTec AppEngine Administration Panel.



2. Go to Plugins.



3. Navigate to Store.



4. Find the WMS.Plugin in the Plugin Store.

   The required Business Logic plugin is installed automatically as a dependency of WMS.Plugin. You do not need to install it separately.

   note

   Business Logic plugins are typically installed automatically as dependencies when required by another plugin. You do not need to select or install them manually.

5. Click Get... next to the plugin name on the list to install the latest plugin version.



6. Click Get & Install.



7. Select Company for installation and click Accept.



8. Select CompuTec AppEngine Instance for installation and click Accept.



9. Review the installation details and click Perform Installation.



10. Click OK to confirm the plugin installation.



11. You can now track the installation progress. Once the installation is complete, click Close.



12. Click Yes to restart the CompuTec AppEngine.



13. Once the restart is complete, click OK.



14. The CompuTec WMS 3.0 plugin is now installed and ready to use.

    After successful installation:

    • the plugin appears in the Downloaded tab
    • it is assigned to the selected Company
    • it is active on the selected CompuTec AppEngine Instance
    • the plugin is available in the CompuTec AppEngine Launchpad



Note

You don’t need to manage dependencies manually. During the installation, the system automatically:

• installs all required plugins
• ensures compatible versions are used
• includes any missing components

This allows you to continue with the setup without additional configuration steps.

Step 2: Activate the WMS background processing job

After installing and activating the CompuTec WMS 3.0 Plugin, activate the required WMS background processing job in CompuTec AppEngine.

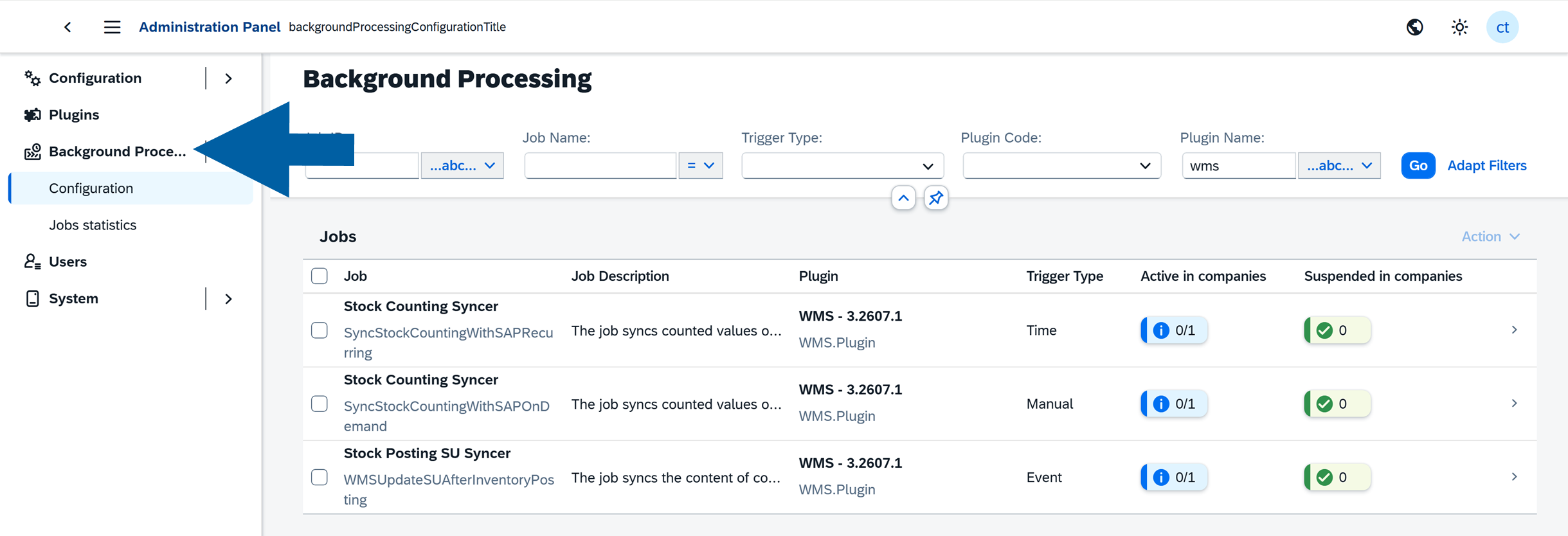

1. Go to CompuTec AppEngine Administration Panel > Background Processing.

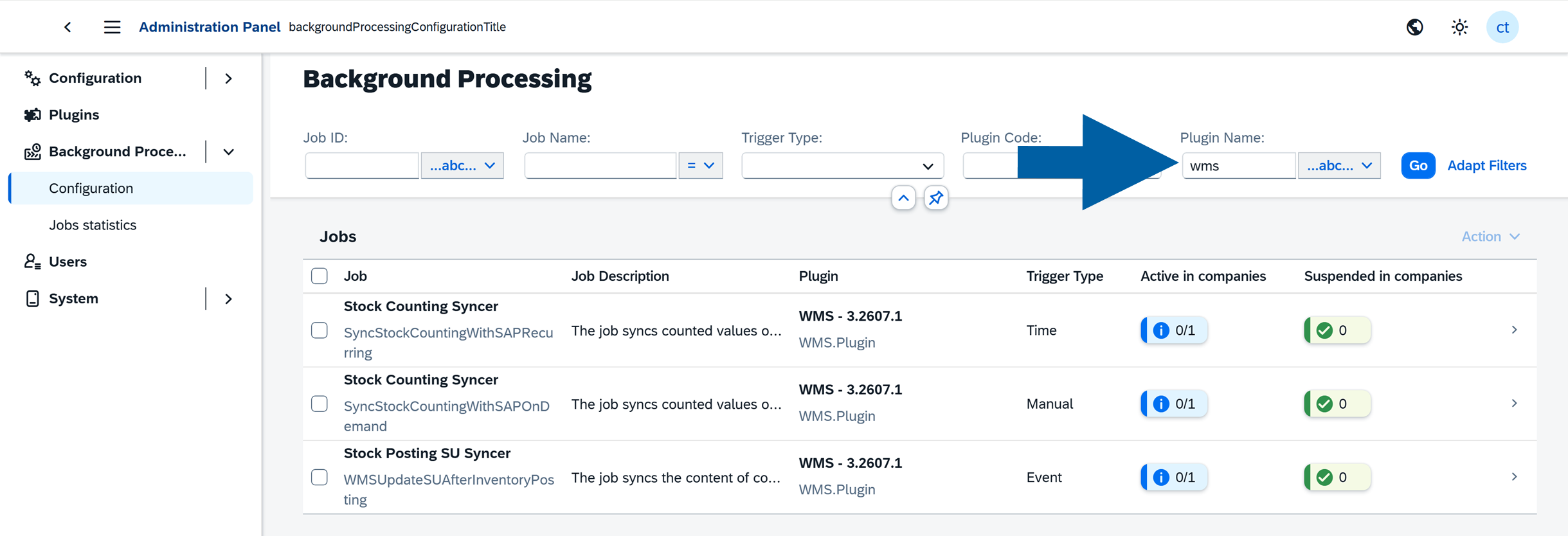

2. Filter Jobs by Plugin Name containing wms, and click Go to apply filters.

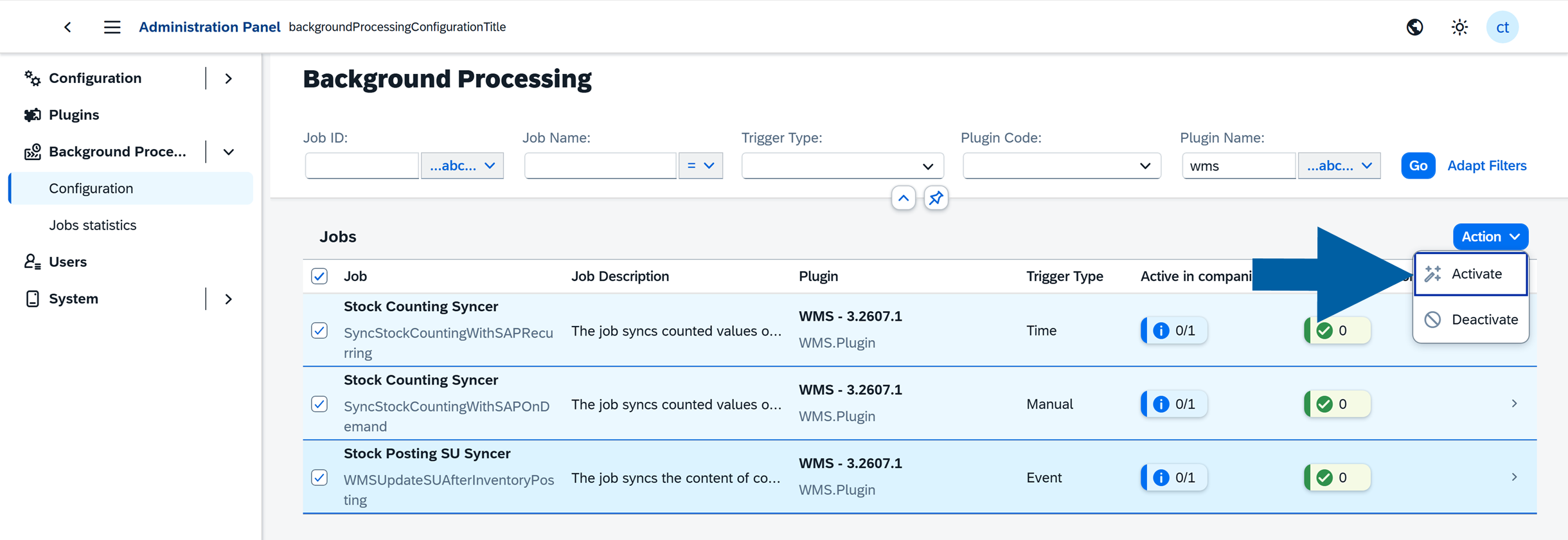

3. Mark all the WMS plugins in the list and click Action > Activate.

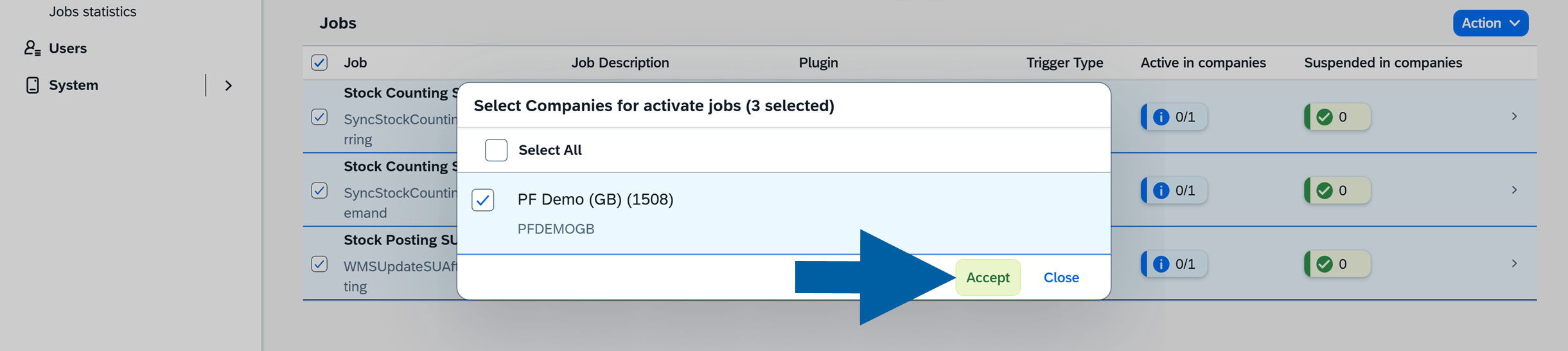

4. Select a company and click Accept.

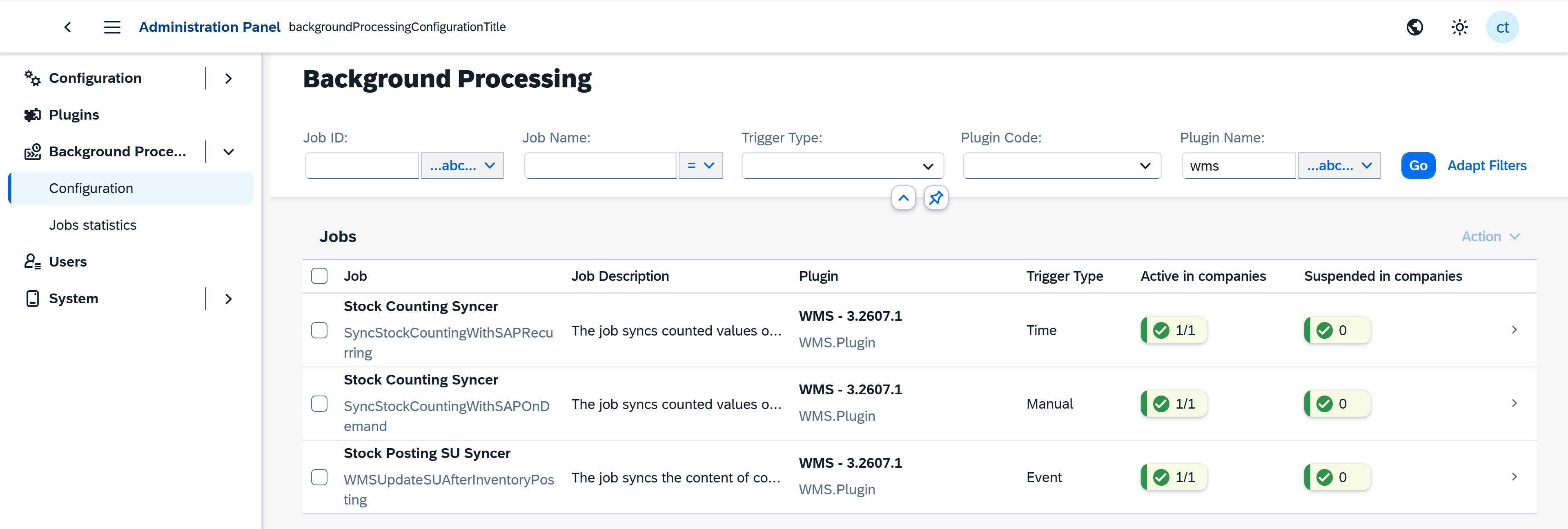

5. Now all WMS Background Processing jobs are active.



Note

This step applies to CompuTec WMS 3.0 only.

Step 3: Download and install CompuTec WMS Server

After installing the WMS 3.0 Plugin:

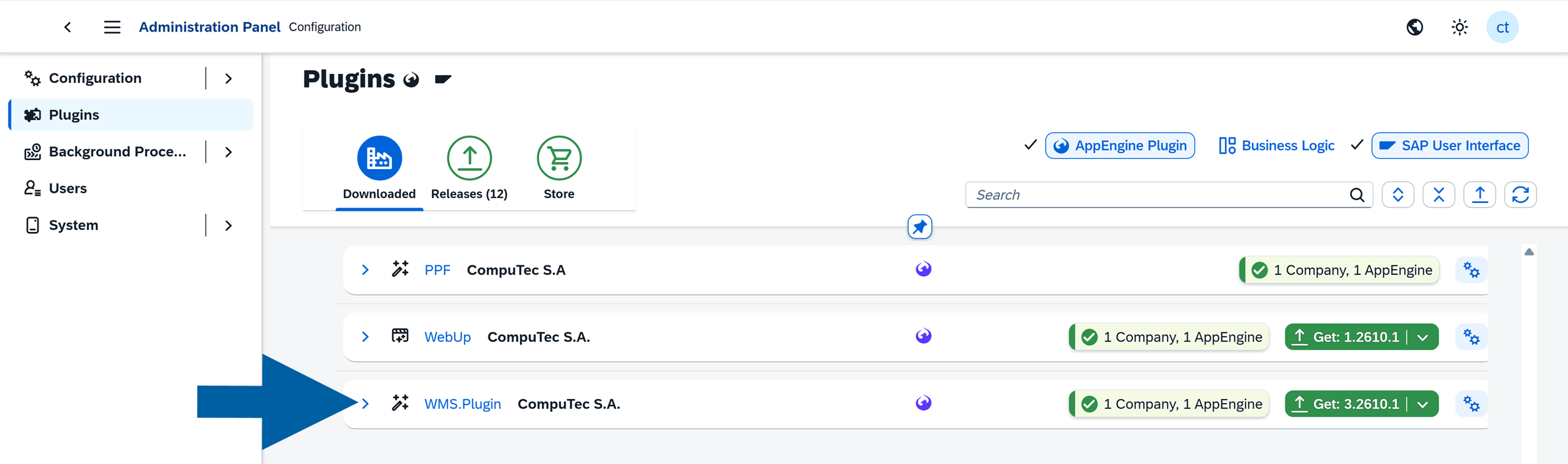

1. Open the installed CompuTec WMS plugin in CompuTec AppEngine.



2. Locate the link to the CompuTec WMS Server installer.



3. Download the installer.

4. Install CompuTec WMS Server using the installer downloaded from the CompuTec WMS plugin.

   After installation, configure the server connection and the SAP Business One companies that will use CompuTec WMS.

   info

   For detailed instructions, see WMS Server Installation and Configuration Guide.

Step 4: Install CompuTec ProcessForce API, if ProcessForce is installed

If CompuTec ProcessForce is installed in the SAP Business One environment, you must also install the CompuTec ProcessForce API Plugin.

CompuTec WMS detects that ProcessForce is installed and requires the ProcessForce API to communicate with it correctly.

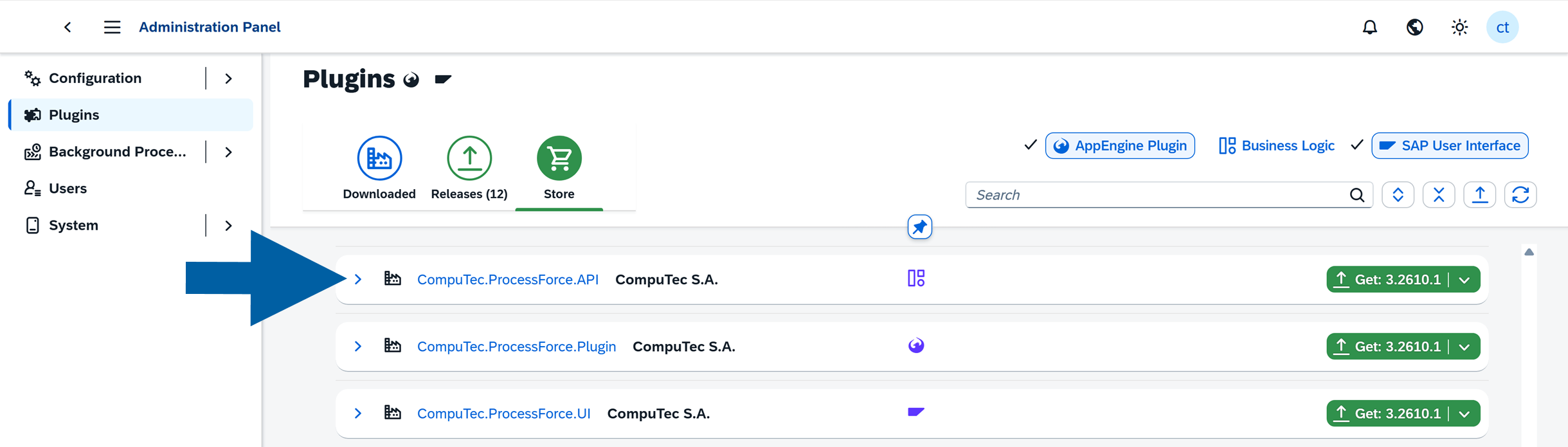

For CompuTec WMS 3.0, install the CompuTec ProcessForce API from the CompuTec AppEngine Plugin Store, following the same plugin installation process used for the CompuTec WMS 3.0 Plugin.

Note

If CompuTec ProcessForce is not installed in your environment, you can skip this step.

Step 5: Configure CompuTec WMS licensing

Configure the required CompuTec WMS licenses and assign them according to your environment.

info

For detailed instructions, see WMS Licensing.

Step 6: Install CompuTec WMS Client

Download and install CompuTec WMS Client on the devices that will be used for warehouse operations.

info

For detailed instructions, see Download CompuTec WMS Client.

Step 7: Configure CompuTec WMS Client

Connect the WMS Client to the WMS Server and configure the required client settings.

info

For detailed instructions, see Configure CompuTec WMS Client.

Important Changes in CompuTec WMS 3.0

If you are upgrading from CompuTec WMS 2.0 to 3.0, be aware of several changes to the installation and configuration process:

• CompuTec WMS 3.0 uses CompuTec AppEngine for plugin installation and management.

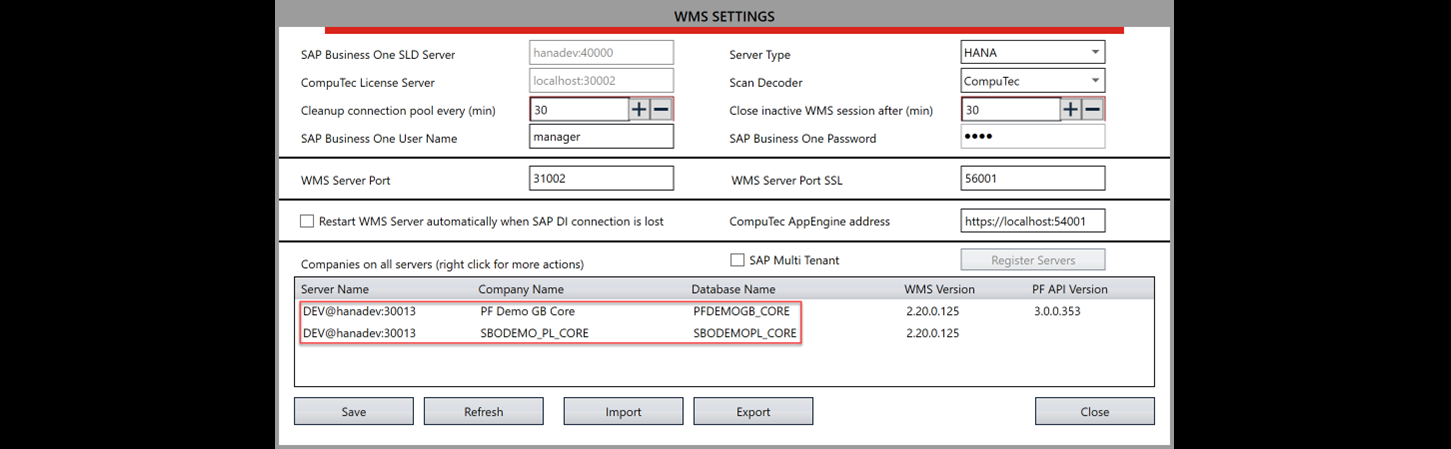

• Only databases configured in CompuTec AppEngine are available to CompuTec WMS Server.





• WMS plugin components and their dependencies are managed through CompuTec AppEngine.

• WMS background processing jobs must be activated in CompuTec AppEngine.

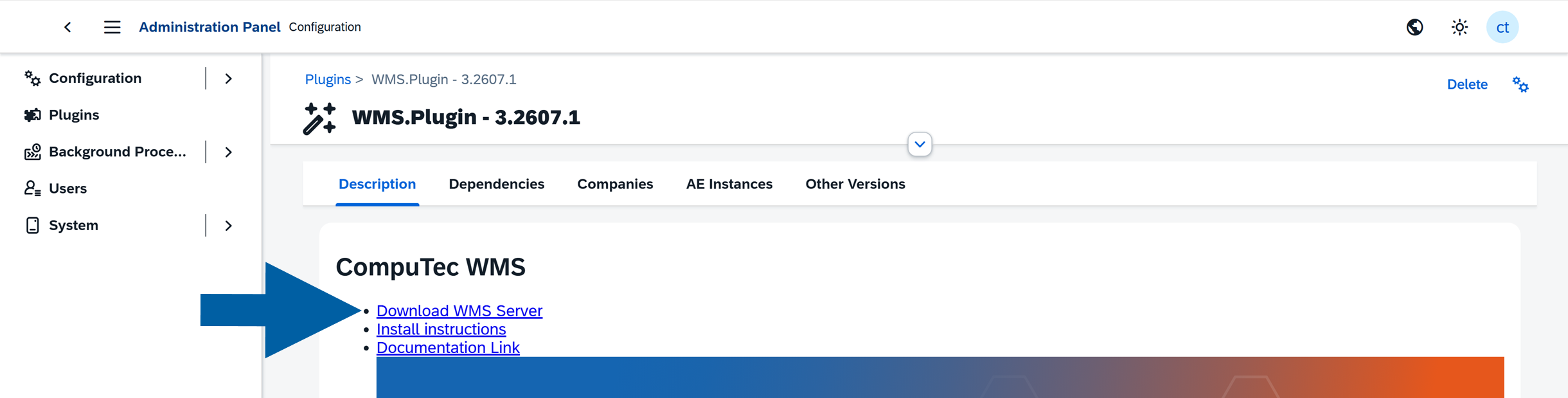

• The WMS Server installer is available from the installed WMS Plugin in the CompuTec AppEngine Administration Panel.

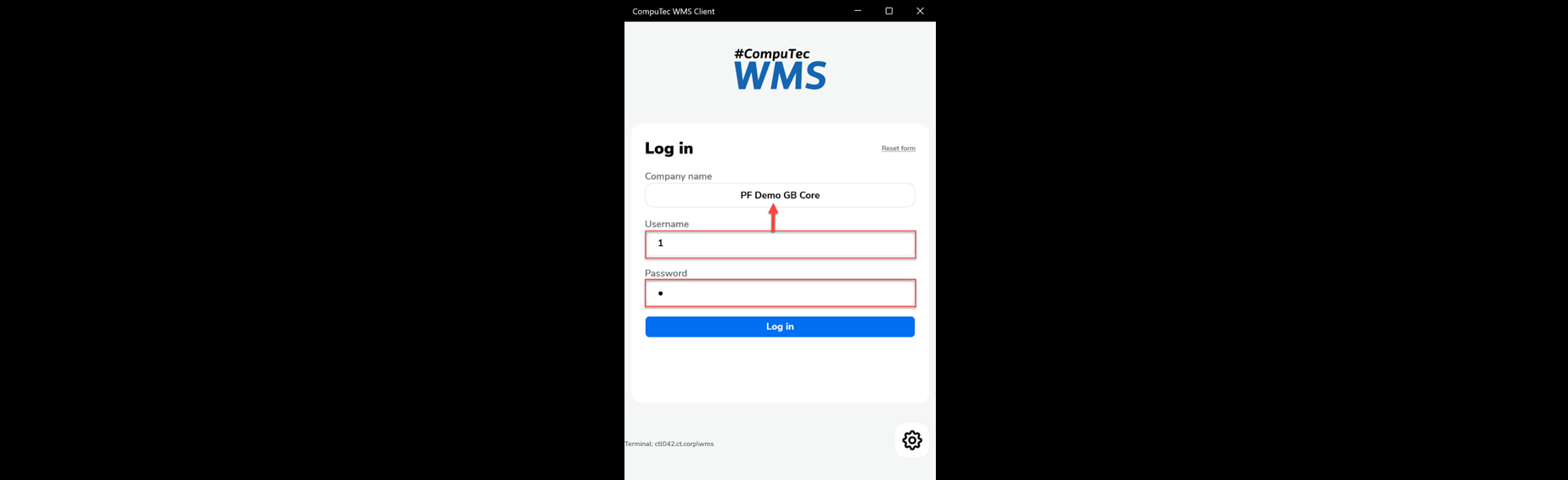

• In CompuTec WMS CLient, database selection requires entering a username and password first.

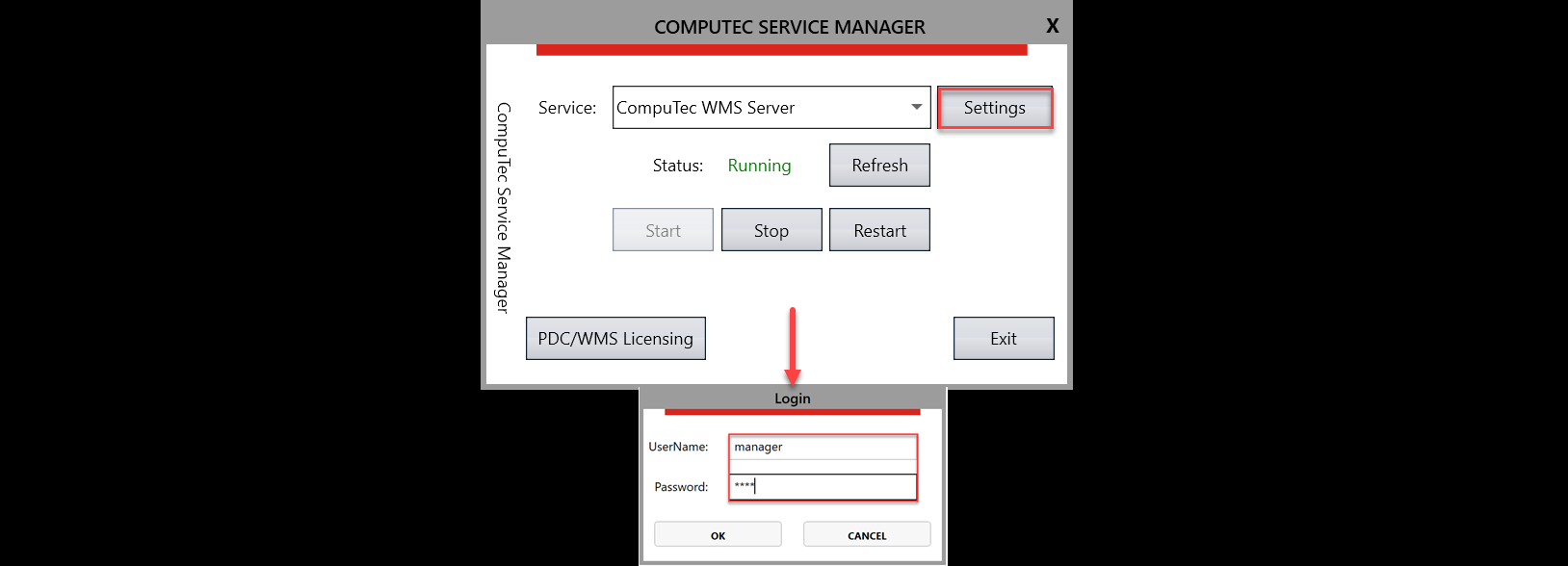

• In CompuTec WMS Server, after selecting CompuTec WMS Server in the CompuTec Service Manager, provide a username and password.



• Installation of CompuTec WMS objects has now been moved to CompuTec AppEngine under CompuTec WMS.BusinessLogic.

Upgrading from WMS 2.0?

If you have previously installed or administered CompuTec WMS 2.0, review these changes before configuring WMS 3.0. They describe differences in the installation and configuration process that may affect an existing WMS environment.

Additional Configuration

Depending on your environment and warehouse processes, additional configuration may be required, such as:

• CompuTec Gateway Service for weight scales and label printing
• RDP scanner configuration
• SAP Business One settings
• Barcode configuration
• Company-specific WMS settings

For company-specific application settings, see Custom Configuration.

Validations

To ensure a seamless and error-free experience with CompuTec WMS, verify the following during installation and configuration:

1. Log in with your username and password to authenticate credentials before selecting a database.

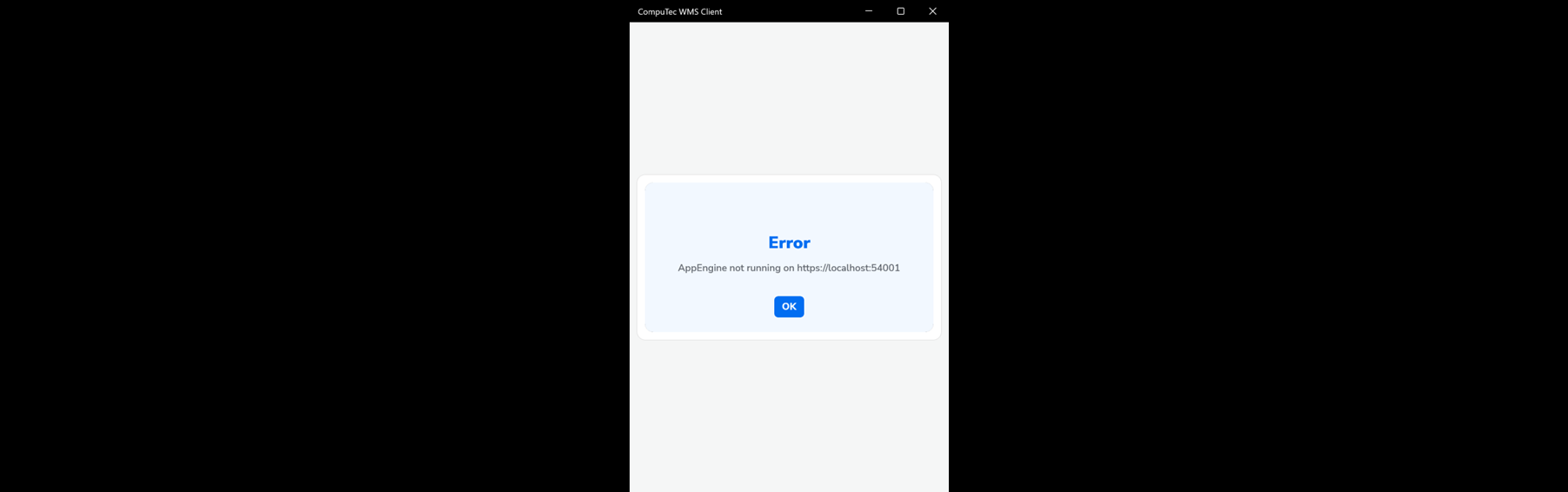

2. Verify CompuTec AppEngine connection by checking the connectivity to the CompuTec AppEngine server and confirm the accuracy of the data entered in the CompuTec WMS Server configuration.

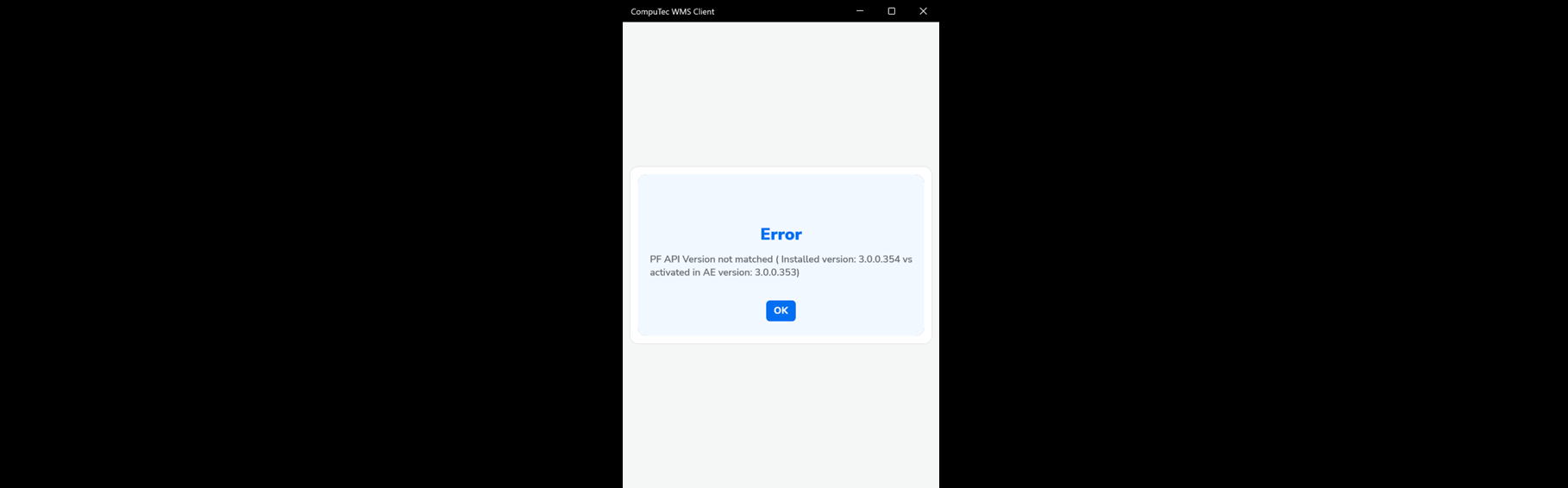

3. Ensure that the CompuTec ProcessForce API is updated to the latest version for compatibility.

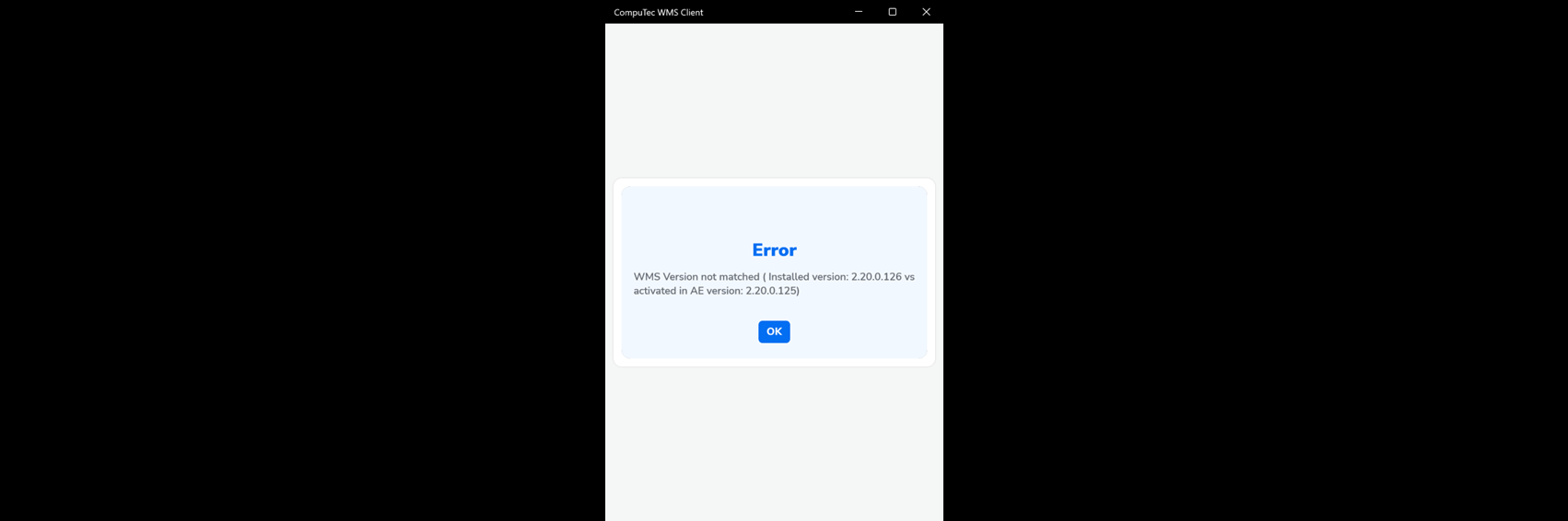

4. Verify that the installed CompuTec WMS version is compatible or update it directly via CompuTec AppEngine.

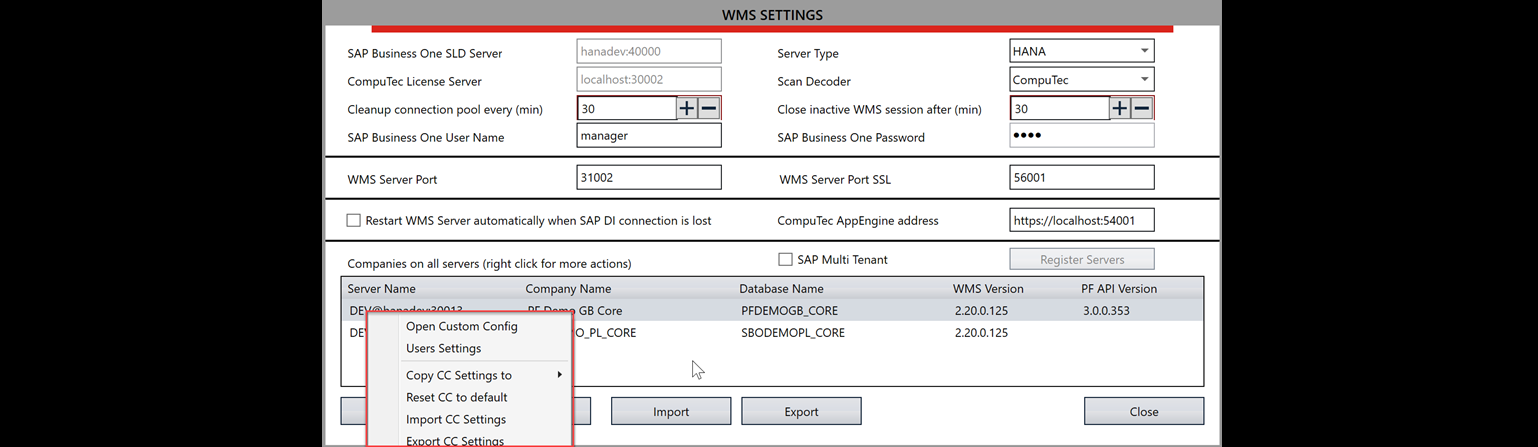

5. If WMS.BusinessLogic is not linked to the selected database, assign it and ensure the correct CompuTec AppEngine instance is chosen.
