Custom Views

CompuTec AppEngine Custom Views are a powerful feature designed to simplify data access for both developers and users.

Key Features

• simplified data consumption in Web API client or UI
• supports OData V4
• supports SAP HANA and Microsoft SQL Server
• supports CompuTec AppEngine Plugins
• The CustomViews folder is available in the CompuTec AppEngine installation directory, and ProgramData/CompuTec/AppEngine.

notatka

Custom View identifiers are extended with the plugin ID during initialization, using the format: <plugin identifier>:<view identifier>

Custom View Definition from Plugin Directory

<file name>.customview.json

{
"Id": "<view identifier>",
"Description": "<view description>",
"Source": {
"Hana": "<SAP Hana query>",
"MsSql": "<MsSQL query>"
}
}

Request

Request URL

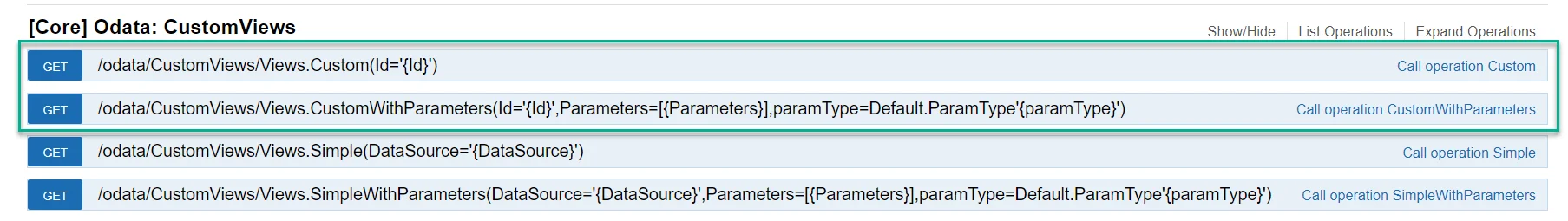

http://{ae_url}/odata/CustomViews/Views.Custom(Id='<plugin identifier>:<view identifier>')

Example

View Definition

File: BusinessPartnerPaymentTerms.customview.json

{
"Id": "BusinessPartnerPaymentTerms",
"Description": "Business Partners and their assigned payment terms",
"Source": {
"Hana": "
    SELECT
        \"OCTG\".\"PymntGroup\", \"OCRD\".\"CardCode\", \"OCRD\".\"CardName\"
    FROM OCRD
    LEFT OUTER JOIN OCTG ON \"OCRD\".\"GroupNum\" = \"OCTG\".\"GroupNum\"
    ",
 "MsSql": "
    SELECT
        \"OCTG\".\"PymntGroup\", \"OCRD\".\"CardCode\", \"OCRD\".\"CardName\"
    FROM OCRD
    LEFT OUTER JOIN OCTG ON \"OCRD\".\"GroupNum\" = \"OCTG\".\"GroupNum\"
    "
}
}

Request

Curl

curl -X GET --header 'Accept: application/json' '<http://localhost:54000/odata/CustomViews/Views.Custom(Id='MYPLUGIN:BusinessPartnerPaymentTerms>')'

Request URL

http://localhost:54000/odata/CustomViews/Views.Custom(Id='MYPLUGIN:BusinessPartnerPaymentTerms')

Response Body

{
"@odata.context": "<http://localhost:54000/odata/$metadata#Custom>",
"value": [
{
  "No": 1,
  "PymntGroup": "- Cash Basic -",
  "CardCode": "00001",
  "CardName": "ABC Inc"
},
{
  "No": 2,
  "PymntGroup": "- Cash Basic -",
  "CardCode": "00002",
  "CardName": "Hanks Deliveries"
},
{
  "No": 3,
  "PymntGroup": "- Cash Basic -",
  "CardCode": "TEST",
  "CardName": ""
}
]
}

Example with Parameters

View Definition

File: request.customview.json

{
"Id": "RequestView",
"Description": "Fetch request from database",
"Source": {
"Hana": "SELECT *FROM CTLABEL.CT_LP_REQUESTDETAILS WHERE \"REQUESTID\" = @RequestId",
"MsSql": "SELECT* FROM CTLABEL.dbo.CT_LP_REQUESTDETAILS WHERE REQUESTID = @RequestId"
}
}

Request

Curl

curl -X GET --header 'Accept: application/json' '<http://localhost:54000/odata/CustomViews/Views.CustomWithParameters(Id='CTLabel%3ARequestView>', Parameters=[%22RequestId%3D61%22],paramType=Default.ParamType'Custom')'

Request URL

http://localhost:54000/odata/CustomViews/Views.CustomWithParameters(Id='CTLabel%3ARequestView',Parameters=[%22RequestId%3D61%22],paramType=Default.ParamType'Custom')

Response Body

{
"@odata.context": "<http://localhost:54000/odata/$metadata#Custom>",
"value": [{}]
}

---
