CompuTec AE Tools for Visual Studio Code

CompuTec AE Tools is a Visual Studio Code extension that scaffolds the parts of CompuTec AppEngine plugin development that are otherwise written by hand: SAP Business One Web Client UI API extensions and UI5 dialogs.

Instead of copying a skeleton project from an existing plugin and adjusting identifiers by hand, you right-click a file in the Explorer and answer a few prompts. The extension creates the project structure and keeps the configuration files that describe it — manifest.json, mta.yaml, app.json, launch.json and the plugin .csproj — in sync with each other.

---

Installation

Open the Extensions view in Visual Studio Code (Ctrl+Shift+X), search for CompuTec AE Tools, and select Install.

The extension can also be installed from a .vsix file, which is how pre-release builds are distributed inside CompuTec:

code --install-extension computec-ae-tools-<version>.vsix

Alternatively, in Visual Studio Code: Extensions view → the … menu → Install from VSIX….

Requirements

• A CompuTec AppEngine plugin workspace. The commands are driven by the files they act on — the plugin's manifest.json and the UI API extension's mta.yaml.
• Node.js and npm on PATH, used to build the generated UI API extension projects.
• The .NET SDK on PATH for the dialog scaffolder. The CompuTec.AppEngine.Templates package is installed on demand — when you add a dialog and the template is missing, the extension offers to install it from nuget.org, and suggests an update when a newer version is available.

Commands

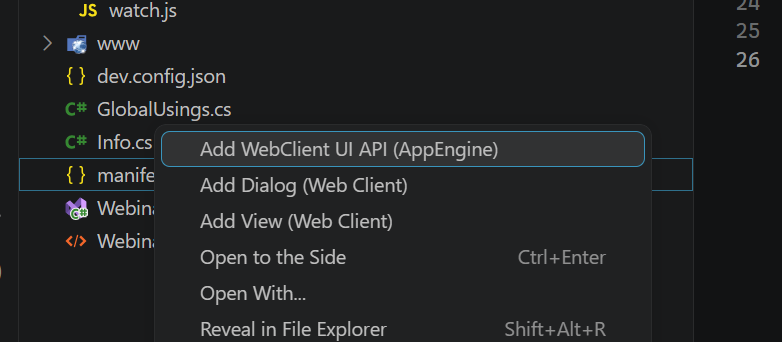

All three commands live in the Explorer context menu and appear only on the file or folder they apply to.

Command	Where	What it does
Add WebClient UI API (AppEngine)	right-click a plugin's manifest.json	Scaffolds a complete UI API extension project — gulp build, mta.yaml, .vscode configuration — and registers it in the plugin
Add WebClient View to UI API (AppEngine)	right-click mta.yaml	Adds a view module (controller, layout, i18n, models) to an existing UI API extension and updates every configuration file that has to know about it
Add Dialog to App (AppEngine)	right-click a folder	Generates a UI5 dialog scaffold from the CompuTec.AppEngine.Templates dotnet template into that folder

Creating a UI API extension

1. Open your AppEngine plugin workspace in Visual Studio Code.
2. Right-click the plugin's manifest.json and select Add WebClient UI API (AppEngine).
3. Answer the prompts — the extension name and the target business object view.
4. Right-click the generated mta.yaml and select Add WebClient View to UI API (AppEngine) to add further views.

View scaffolding includes a picker for the known SAP Business One Web Client business object view IDs — Sales Order, Business Partner and others — so a new extension binds to the correct Fiori elements view without looking the identifier up.

Adding a UI5 dialog

Right-click a folder inside your plugin's UI5 application and select Add Dialog to App (AppEngine). The dialog is generated into that folder from the dotnet template package. If the template is not installed, accept the install prompt — the dialog is generated once the installation finishes.

Related topics

• CompuTec Tool — the dotnet ct command-line utility for models, packaging and translations.
• Plugin Development Configuration — the dev.config.json file the AppEngine host reads when loading a plugin for debugging.

License and third-party notices

CompuTec AE Tools is released under the Apache License 2.0.

The UI API project templates bundled with the extension are derived from SAP's @sap/generator-businessone-webclient-extension (© SAP SE, Apache License 2.0) and were modified by CompuTec. The extension ships a NOTICE file with the full attribution.

SAP and SAP Business One are trademarks of SAP SE. CompuTec AE Tools is an independent CompuTec product and is not endorsed by or affiliated with SAP.
