Introduction

Proper configuration of your Mettler Toledo weighing scale ensures accurate weight readings and seamless integration with CompuTec Gateway and CompuTec PDC. This guide walks you through setting up a template, selecting a work mode, and assigning the template to your device.

notatka

This section was created based on the MettlerToledoICS429 model configuration.

Defining a Template

• Go to the Communication option in the main menu.

• Choose the Define Template option.

• Choose Template 1 and set up what will be pointed/sent by the weight scale. Set up the following details:

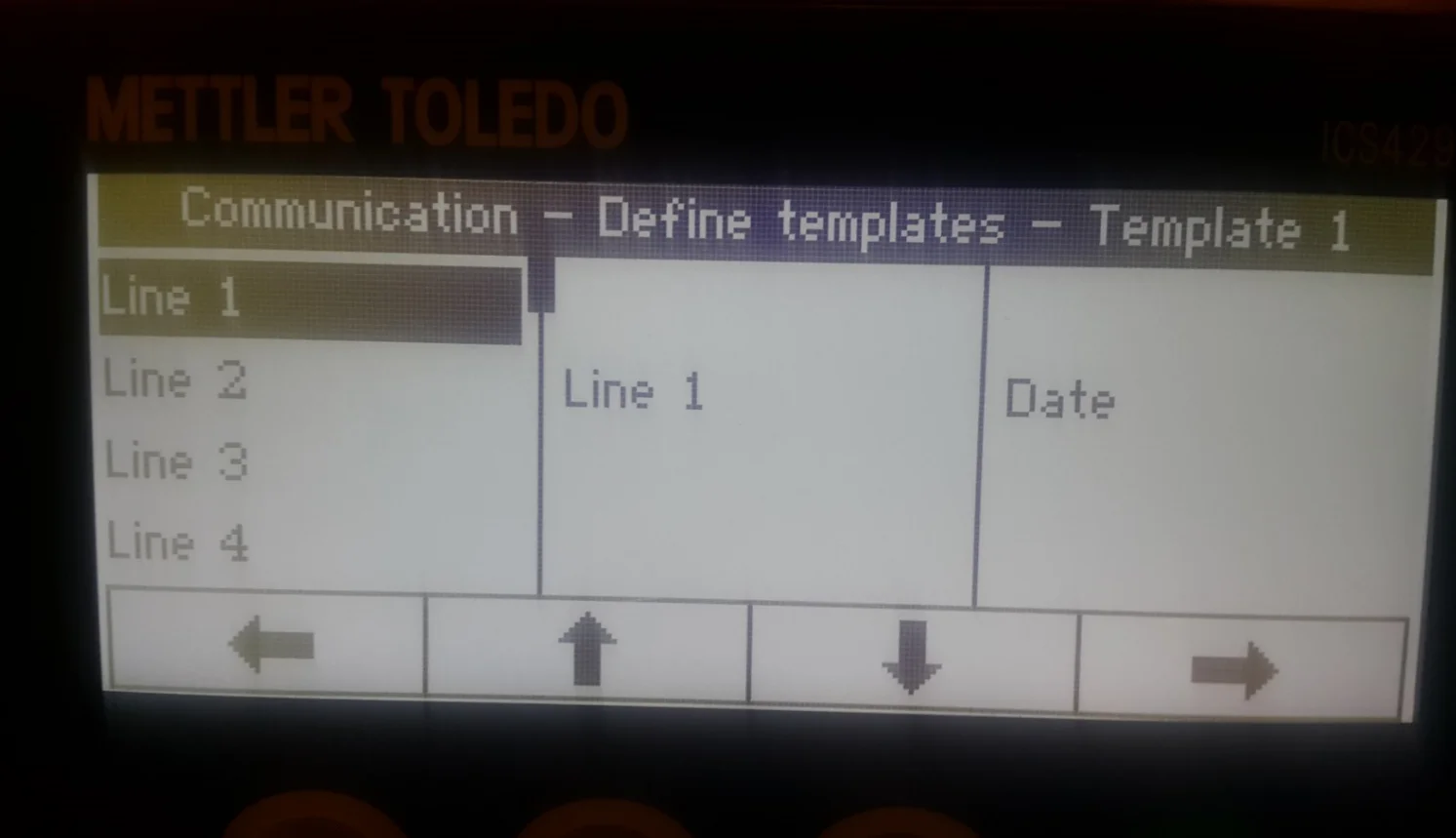

  • Line 1: Date

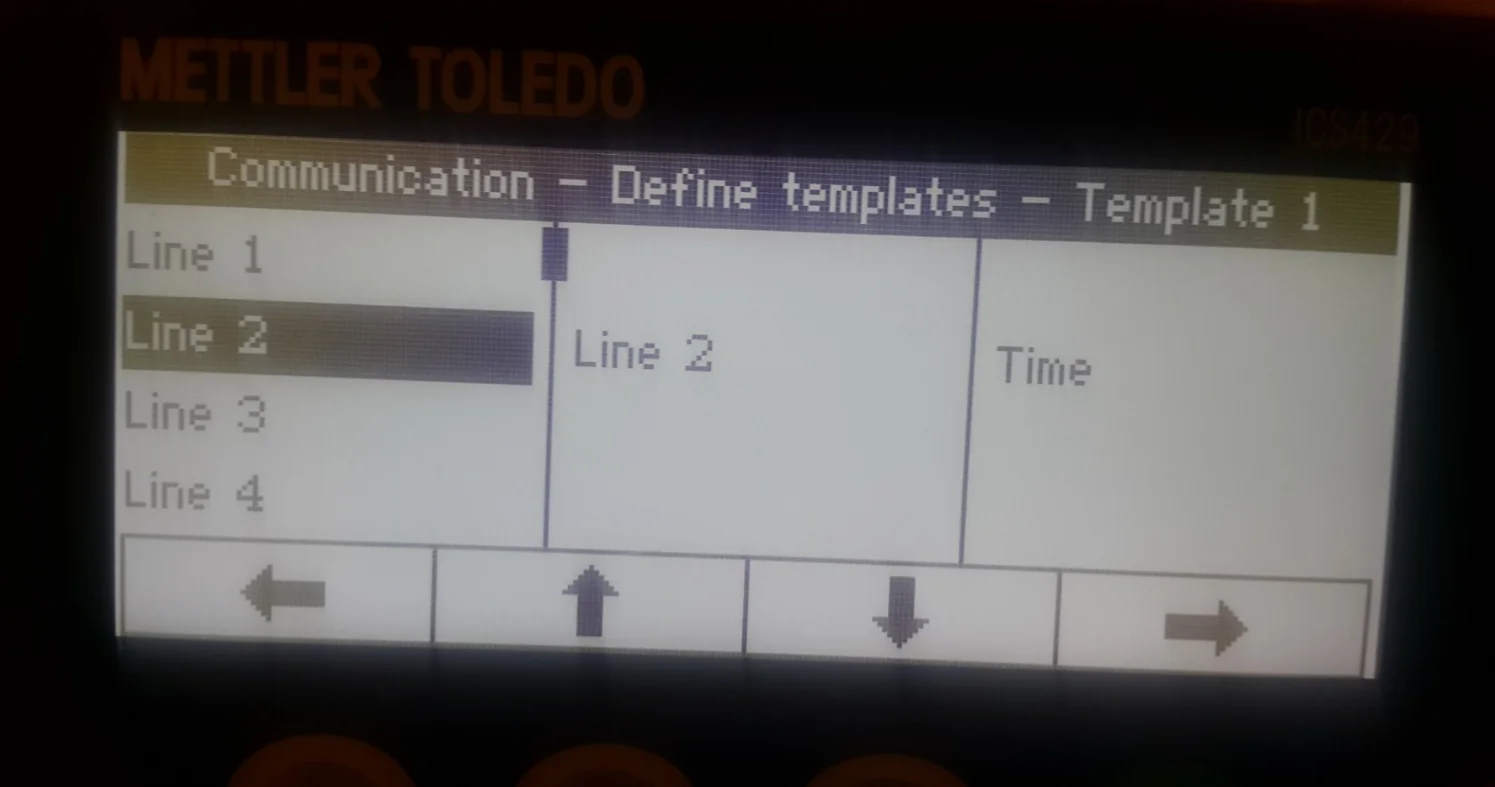

  • Line 2: Time

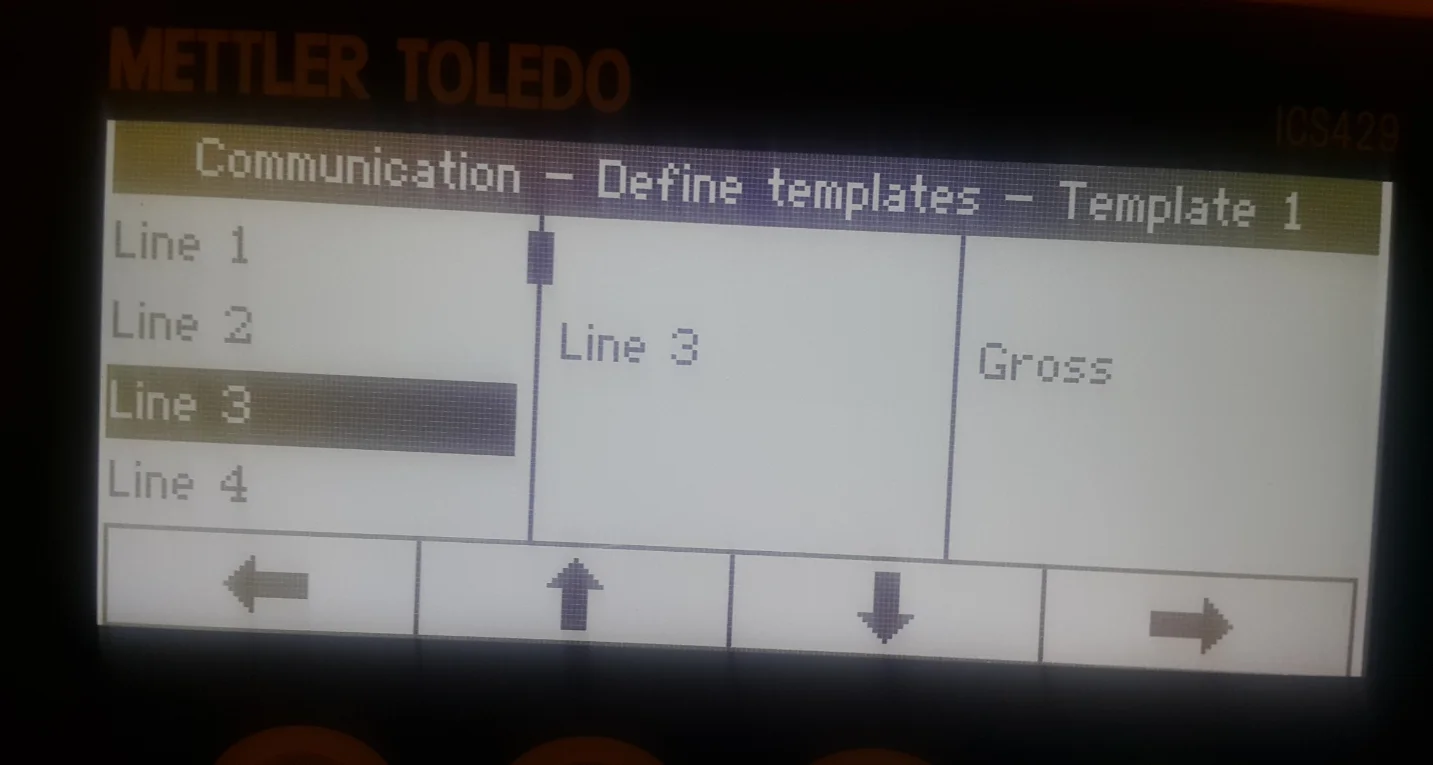

  • Line 3: Gross

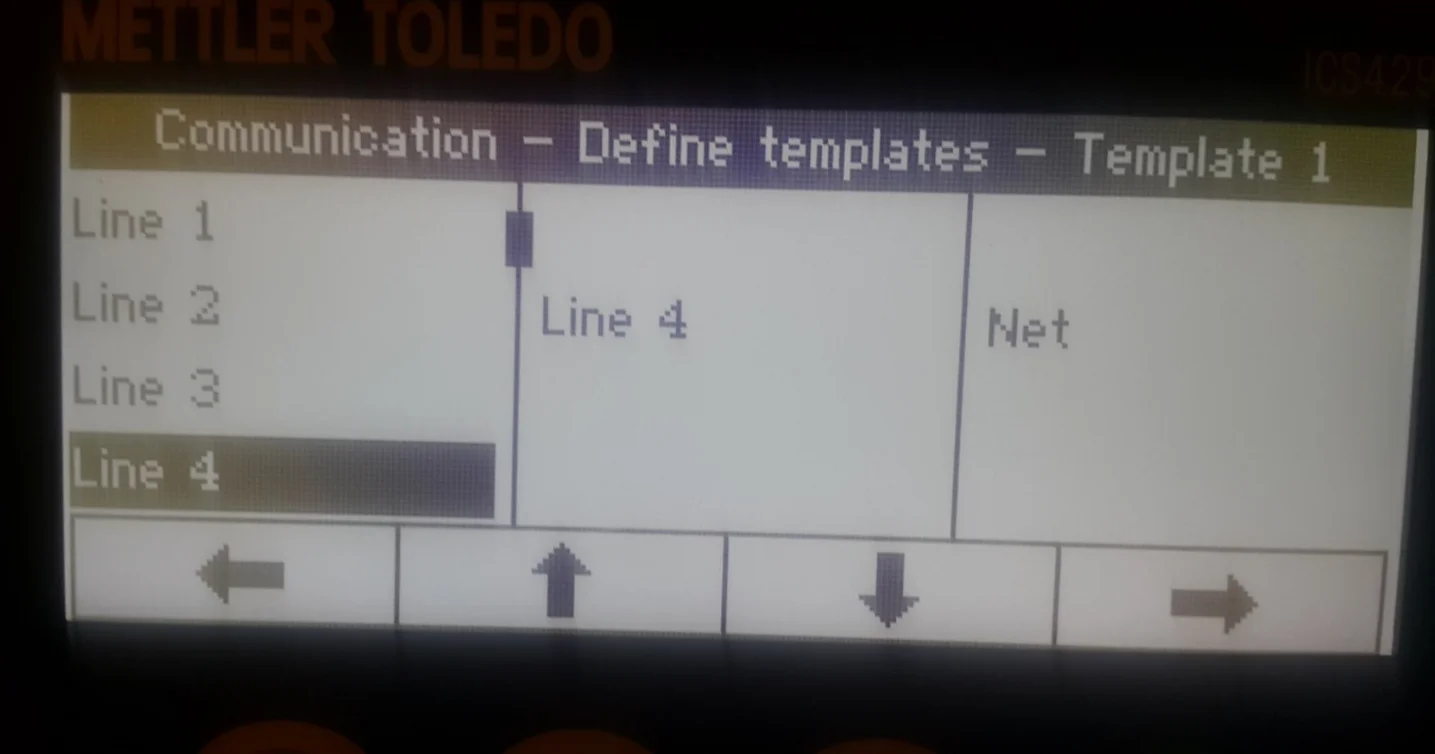

  • Line 4: Net

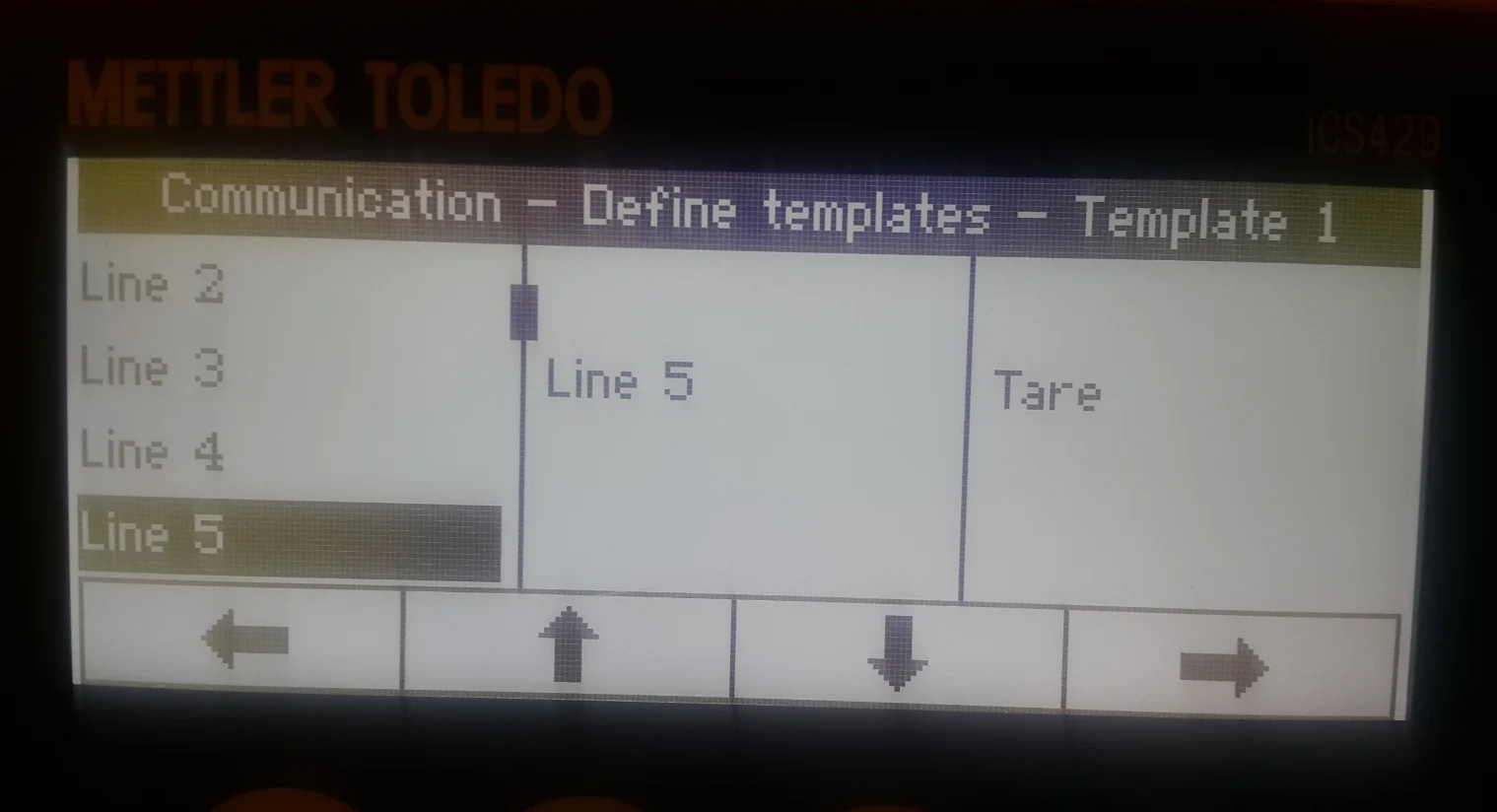

  • Line 5: Tare

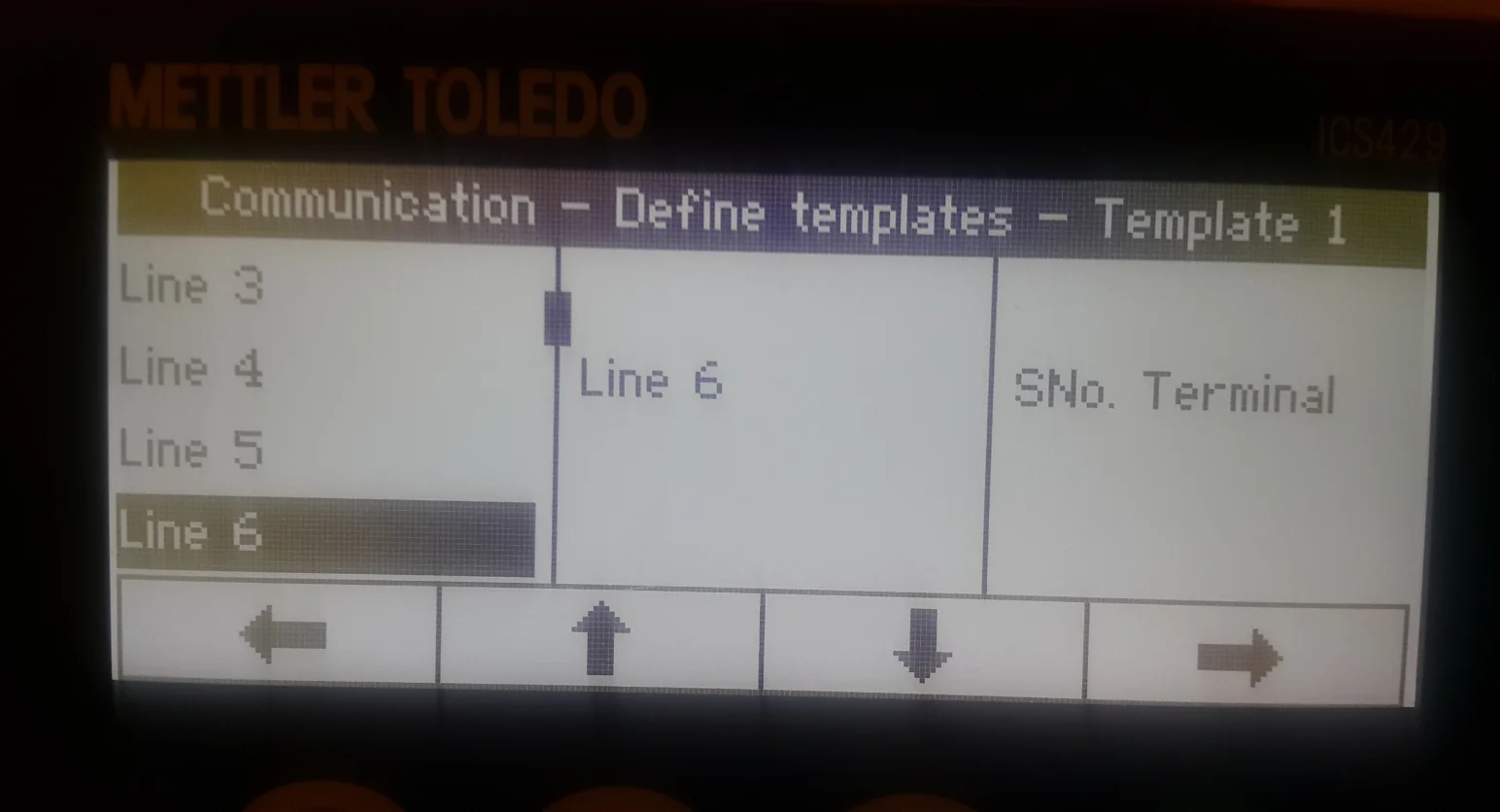

  • Line 6: SNo. Terminal.

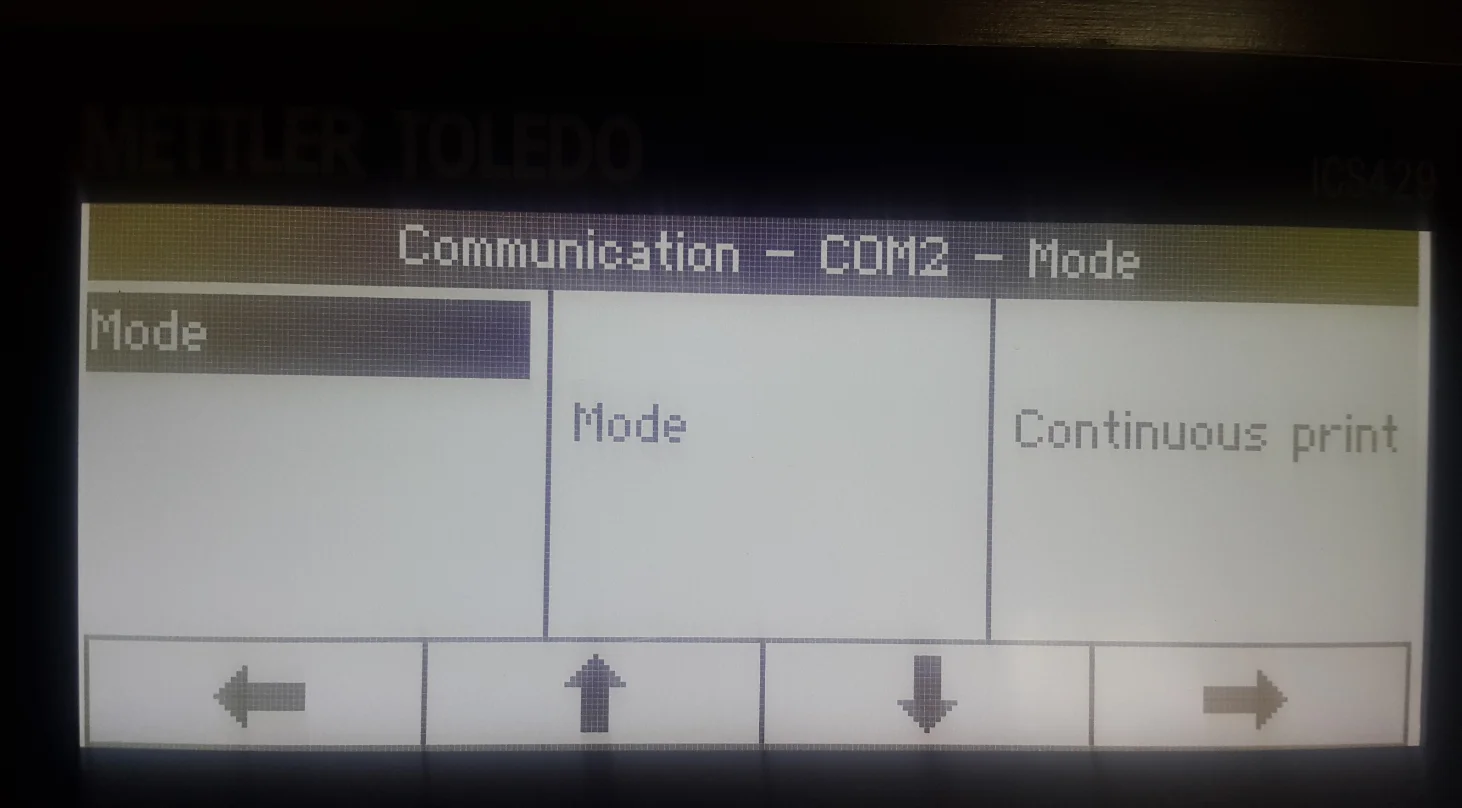

Choosing Mode for Weight Scales

• Go to the Communication option in the main menu
• choose COM2
• choose Mode
• choose Continuous print.

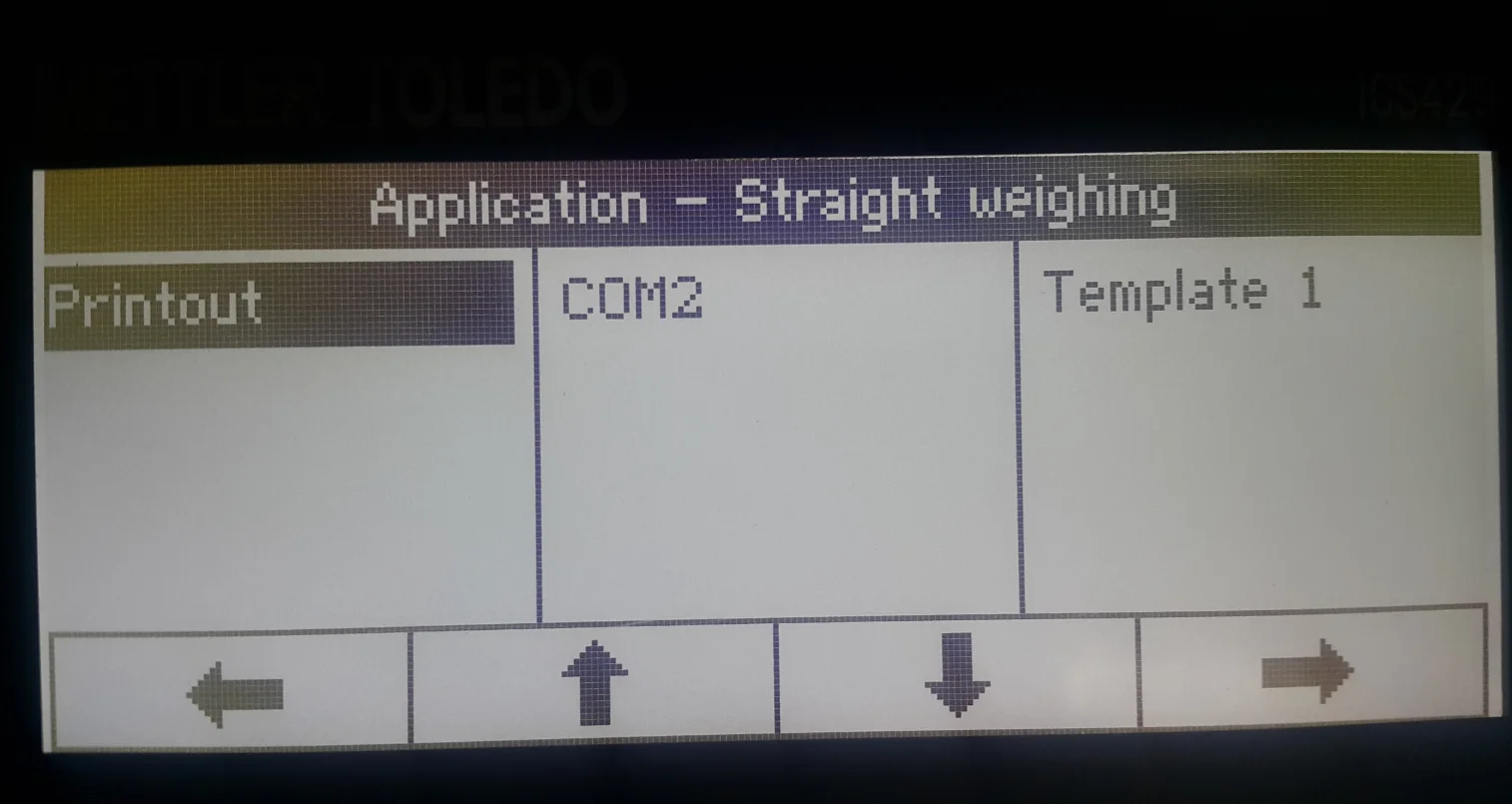

Assigning the Defined Template to the Weight Scales

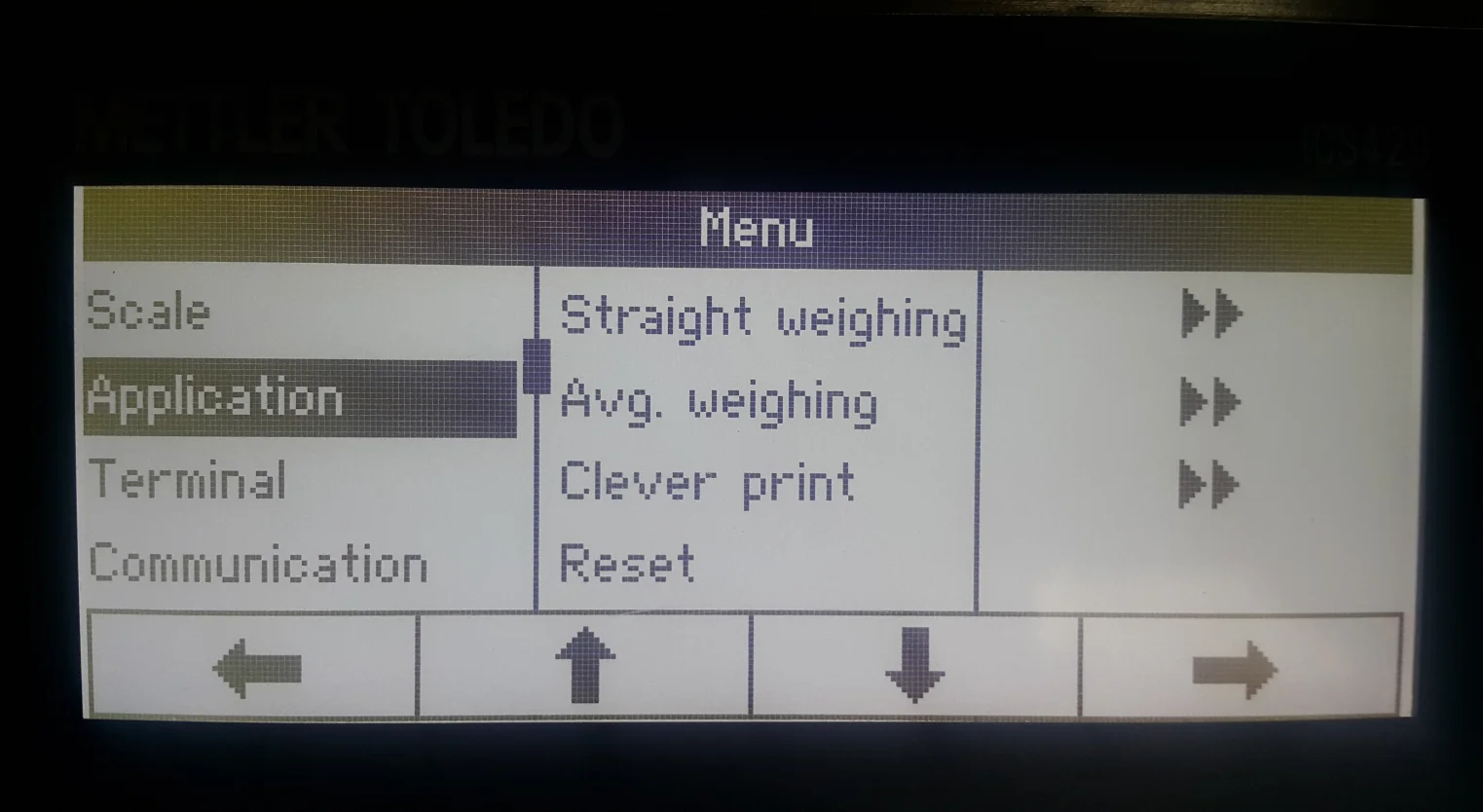

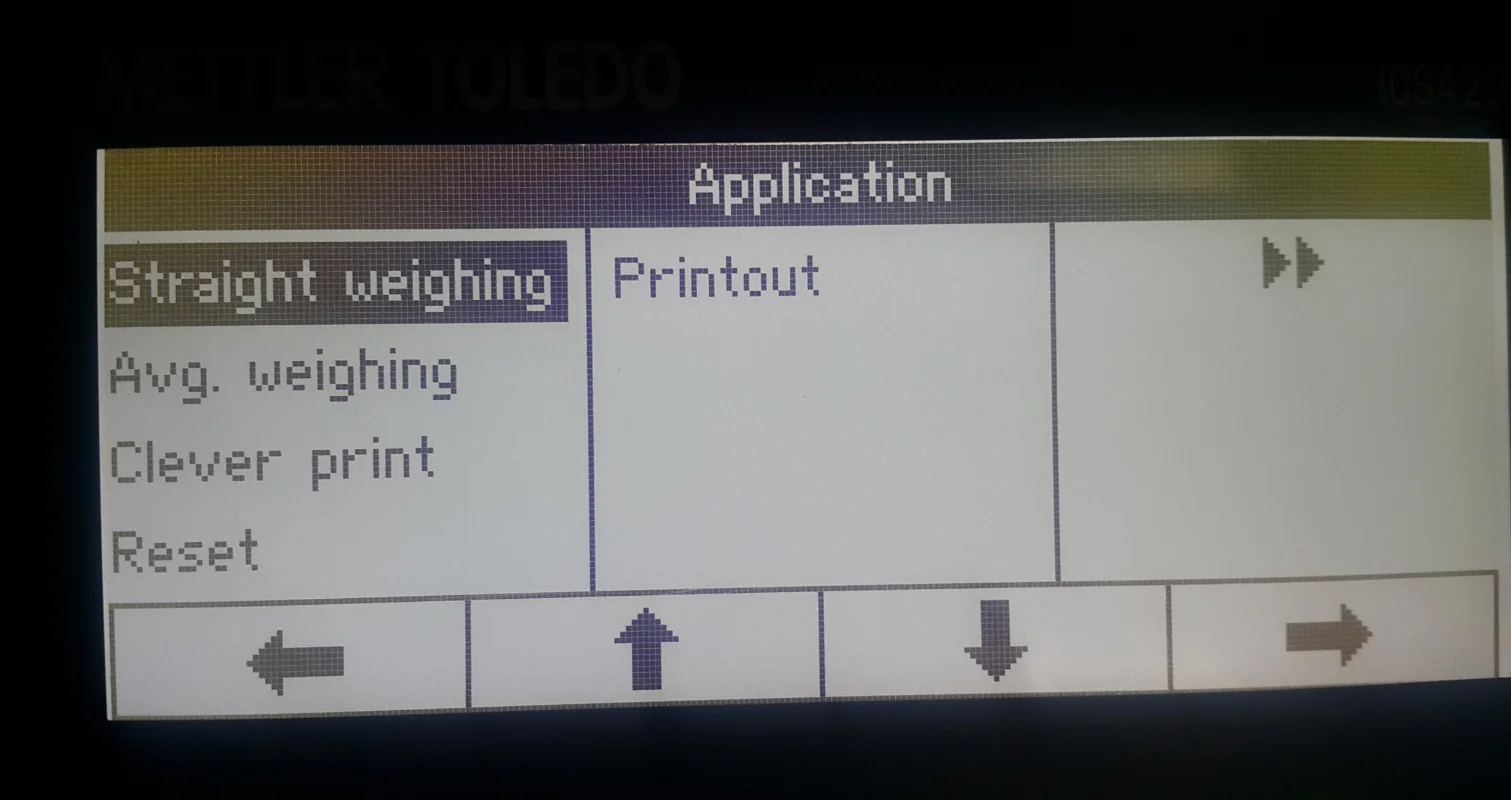

• Choose the Application option from the menu
• Choose Straight weighing option
• Choose Printout

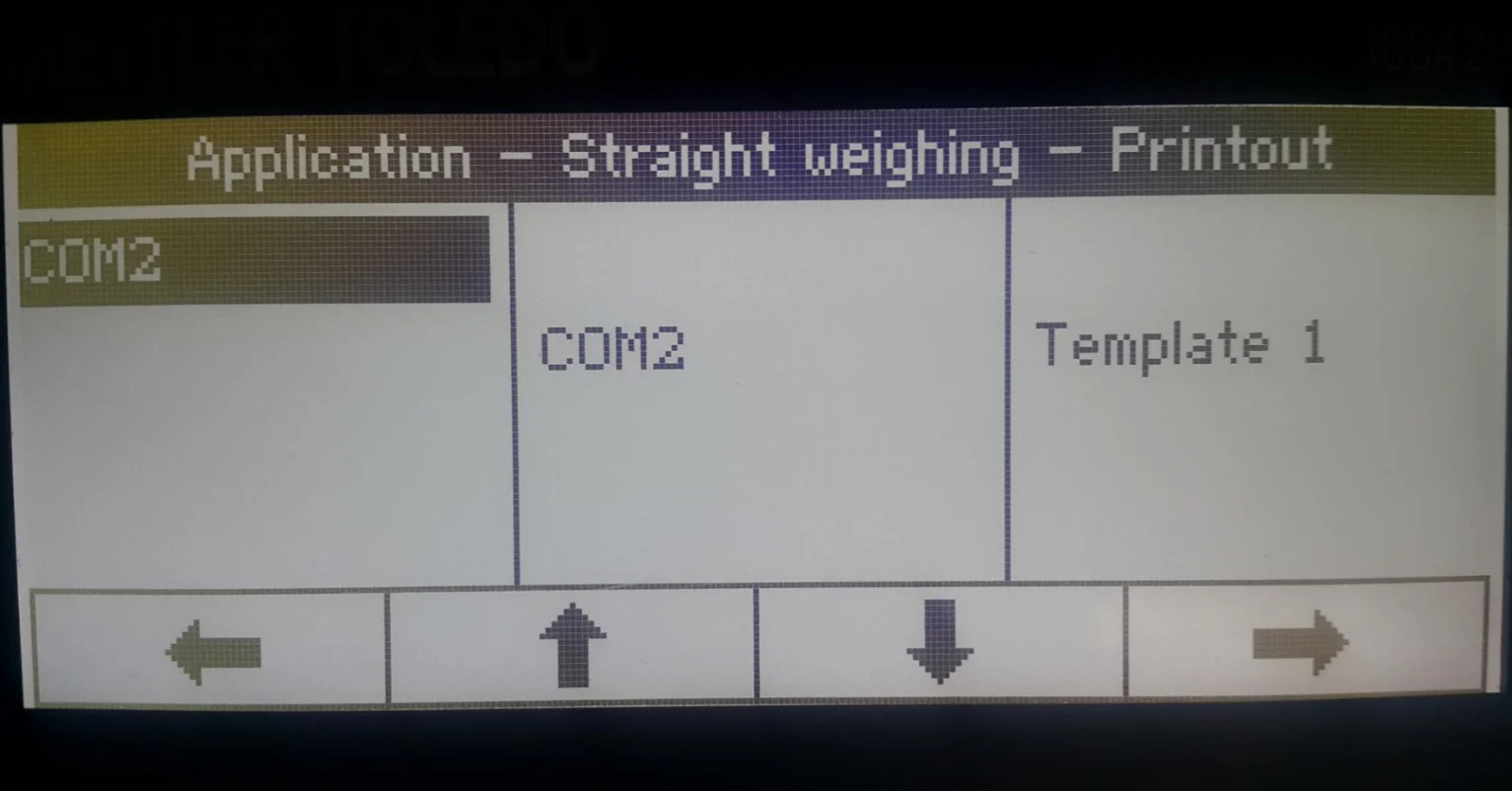

• Choose COM2
• Choose COM2 again

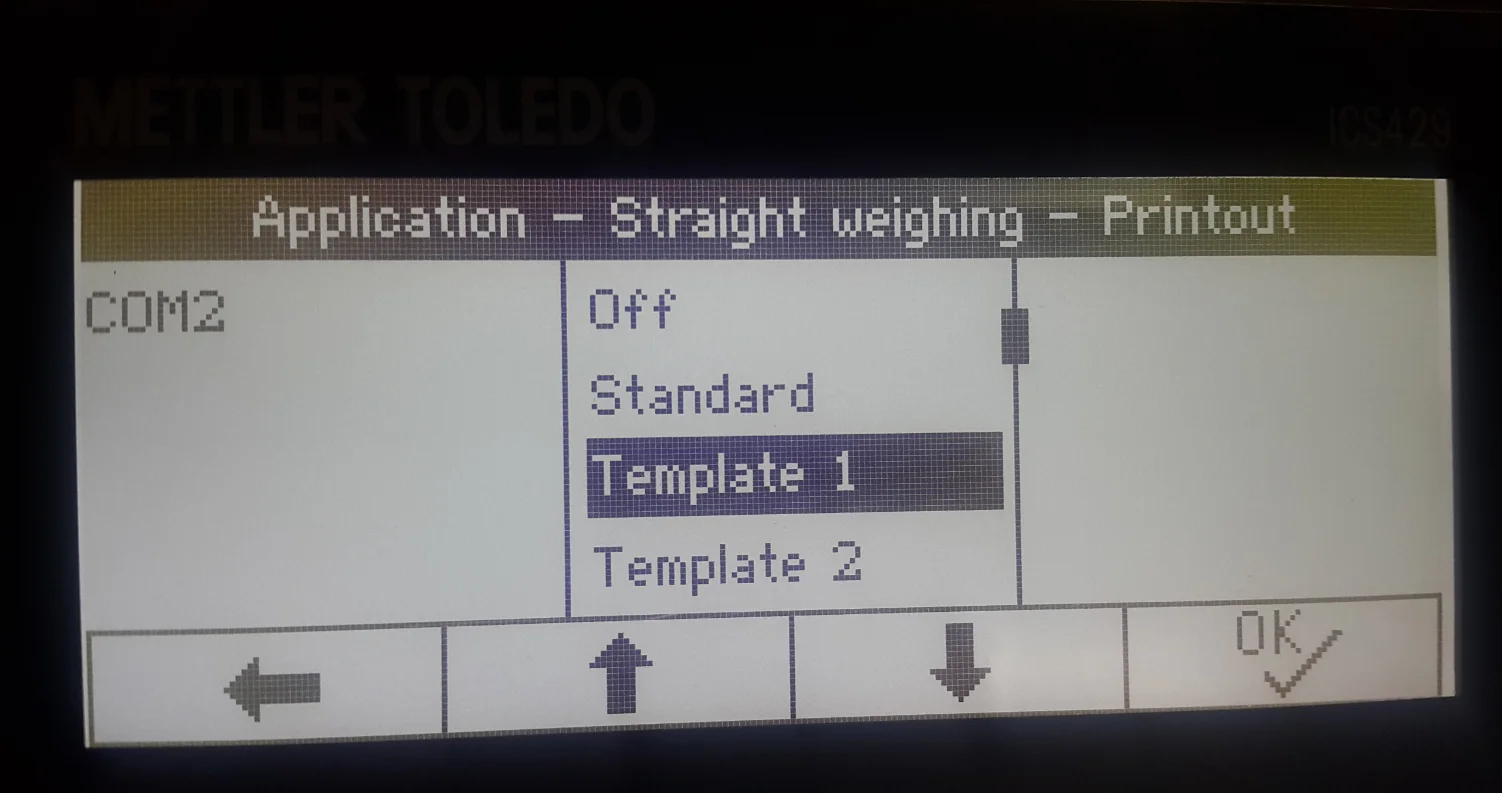

• Choose the Template name of the Template that was defined in the first step ('Template 1' in this example)
• Click OK to save the changes.

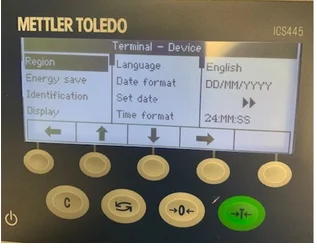

Set Date and Time Format

Now, the weight scale is correctly configured and is ready to work with CompuTec Gateway and CompuTec PDC.

---
