CompuTec License Server Installation

The CompuTec License Server manages user licenses for CompuTec solutions.

This guide explains how to install the CompuTec License Server and configure Windows Firewall to allow communication with client applications.

Note

For information about available license types, see CompuTec ProcessForce User License Types.

Before you start​

Before you begin, make sure:

  • You have administrator rights on the Windows server.
  • Any previous version of CompuTec ProcessForce License Server has been removed.
  • Any previous version of SAP COM License Bridge has been removed (required only for environments that previously used CompuTec ProcessForce 8.81, 8.82, or 9.0 PL05–PL08 HotFix).
  • You have downloaded the latest CompuTec License Server installation package.
important

CompuTec License Server is supported only on Windows operating systems.

Install and congigure CompuTec License Server​

Step 1: Install CompuTec License Server​

  1. Extract the CompuTec License Server installation package.

  2. Run CompuTec.LicenseServer.Setup.msi.

  3. Click Next.

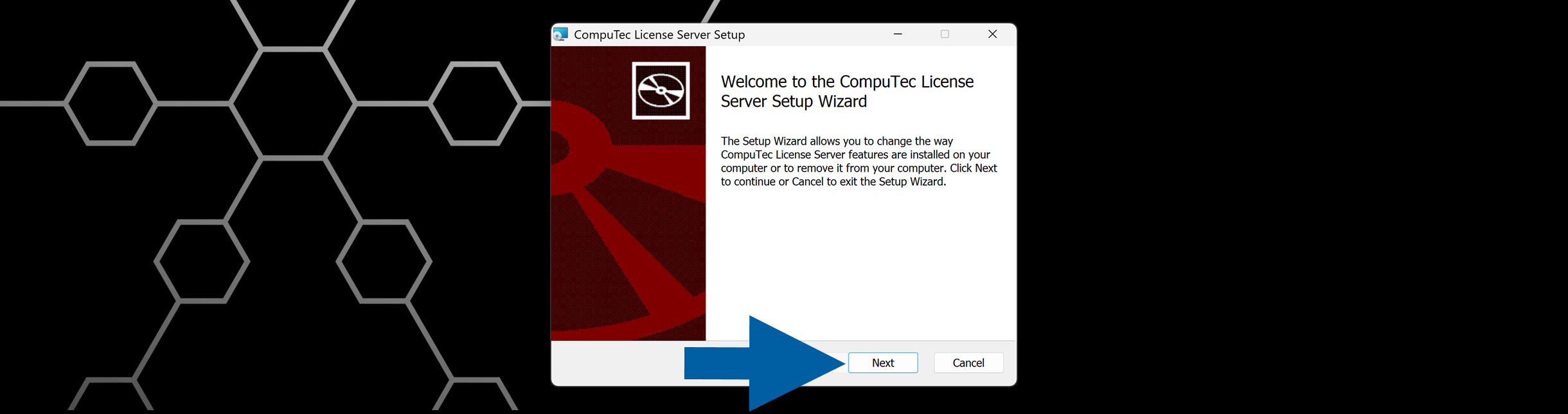

    CompuTec License Server Setup Wizard welcome dialog with title CompuTec License Server Setup, instructions to change installation options, and Next and Cancel buttons on a Windows desktop background

  4. Accept the default installation folder (recommended) or select a custom location.

  5. Click Next.

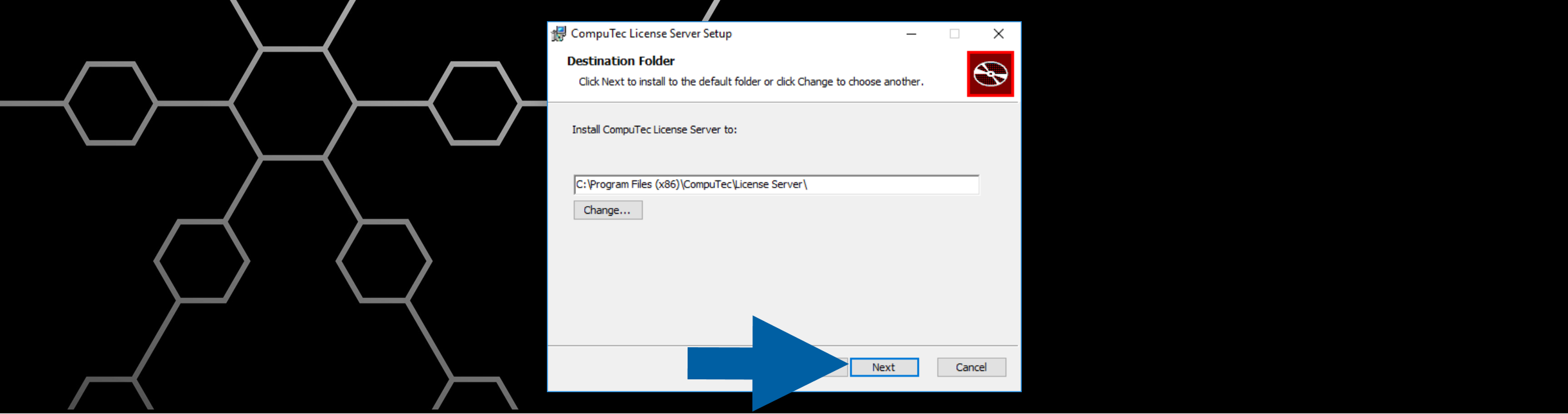

    CompuTec License Server installer destination folder screen showing installation path C:\Program Files (x86)\CompuTec\License Server\ with Next and Cancel buttons on a hexagonal patterned desktop background

  6. Review the installation settings, and click Install.

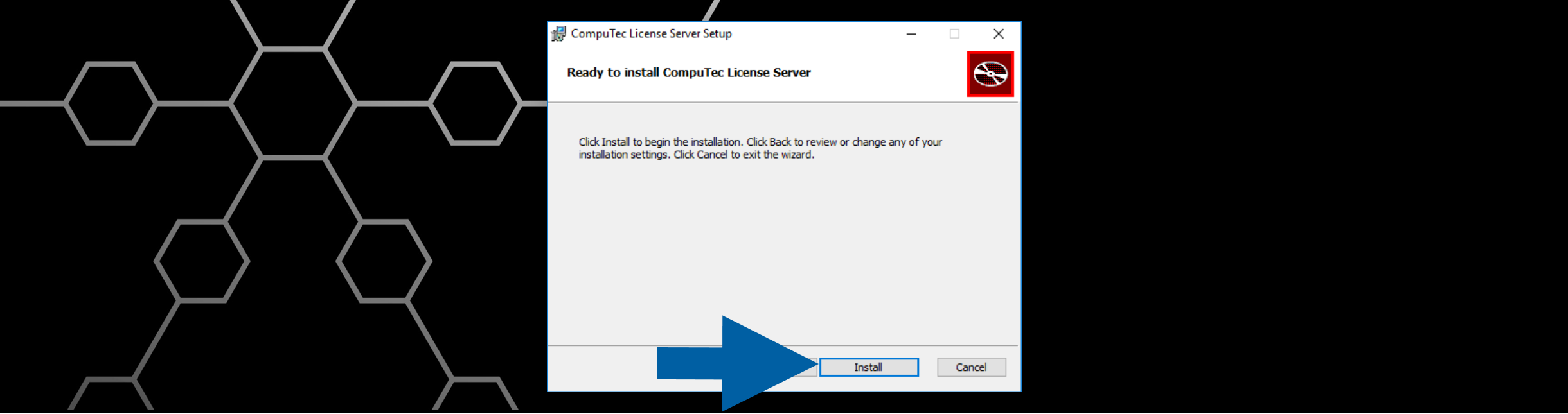

    CompuTec License Server Setup wizard ready to install CompuTec License Server with Install and Cancel buttons visible on a hexagonal patterned desktop background

  7. Wait for the installation to finish.

  8. Click Finish.

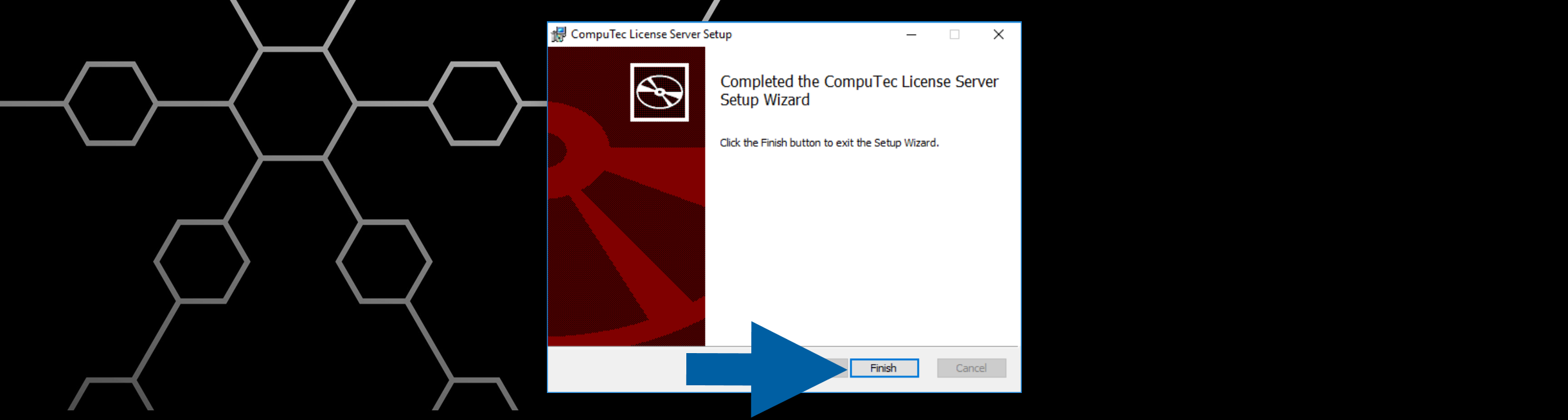

    CompuTec License Server Setup Wizard completion dialog on a Windows desktop with dark hexagonal background showing the message Completed the CompuTec License Server Setup Wizard and instructions to click the Finish button to exit the Setup Wizard

Step 2: Configure Windows Firewall​

To allow communication with the CompuTec License Server, create an inbound firewall rule for TCP port 30002.

  1. Open Windows Settings.

  2. Navigate to Windows Security > Firewall & network protection.

  3. Click Advanced settings.

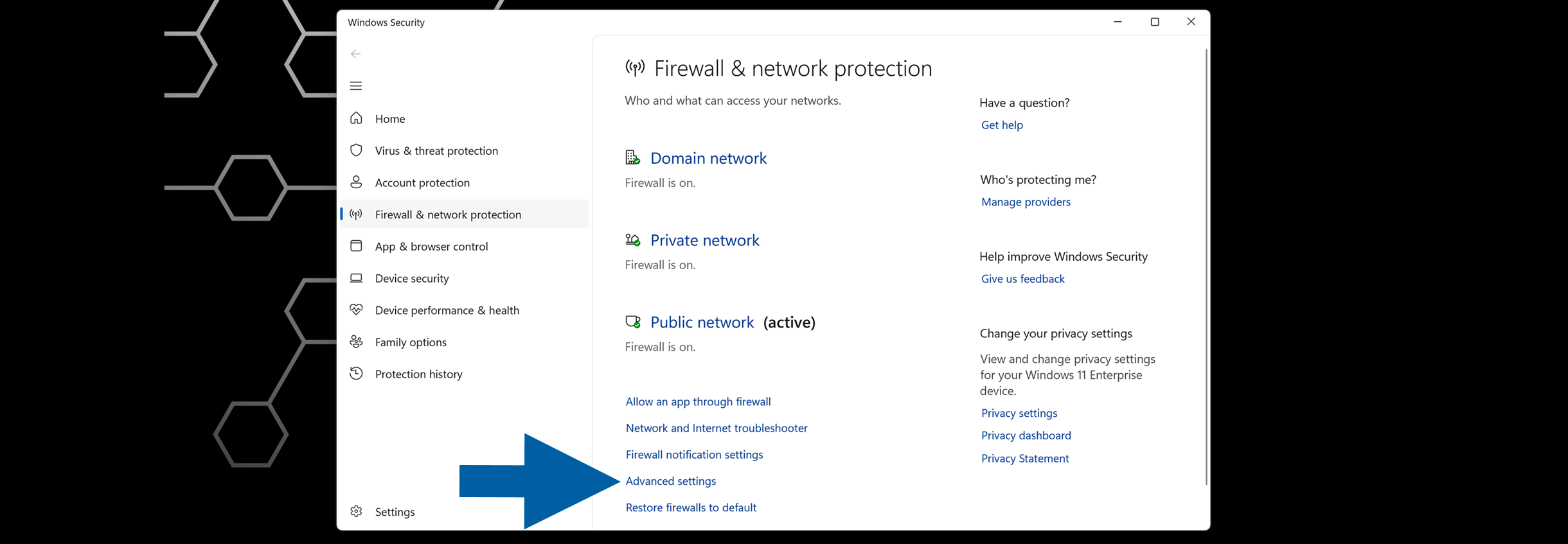

    Windows Security Firewall and network protection page showing domain private and public network status with Advanced settings link visible

  4. In Windows Defender Firewall with Advanced Security, select Inbound Rules.

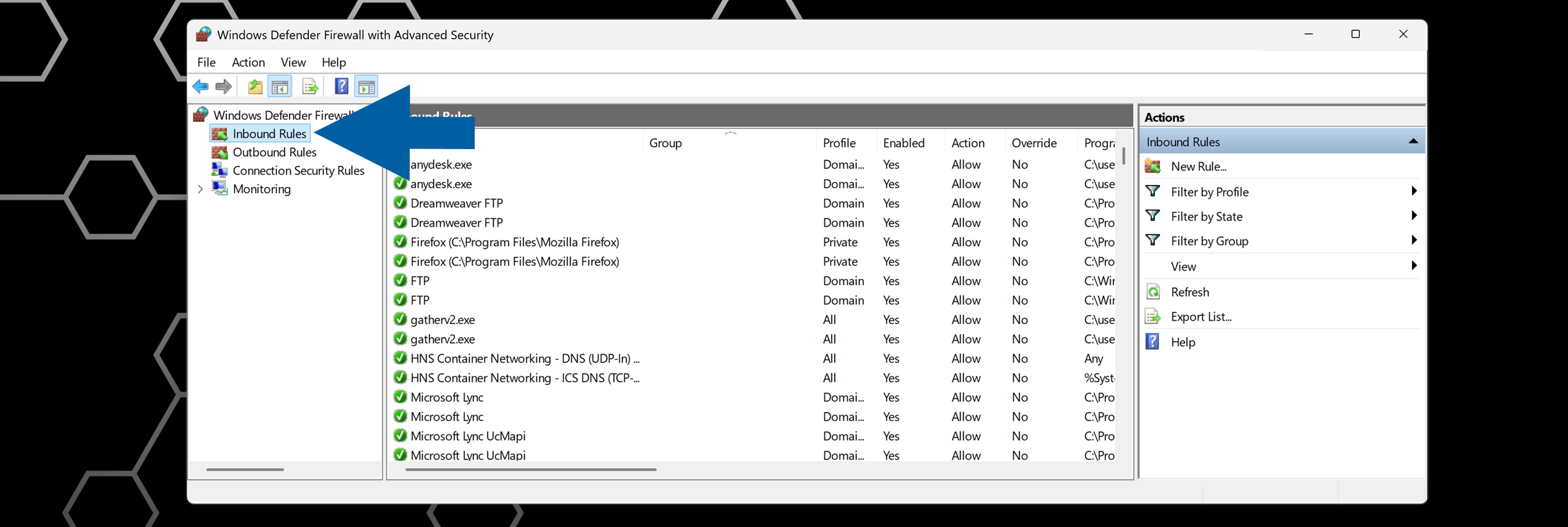

    Windows Defender Firewall with Advanced Security window with Inbound Rules selected in the left pane and rule list area on the right

  5. Click New Rule....

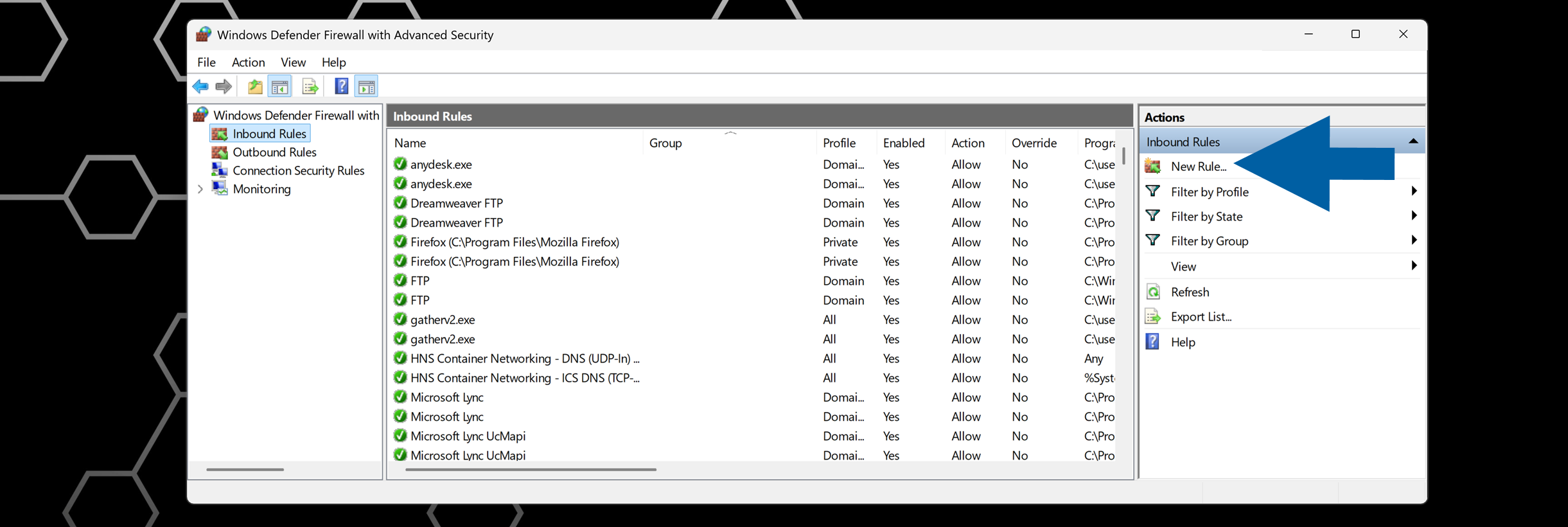

    Windows Defender Firewall with Advanced Security showing New Rule command in the Inbound Rules pane and the New Rule wizard available

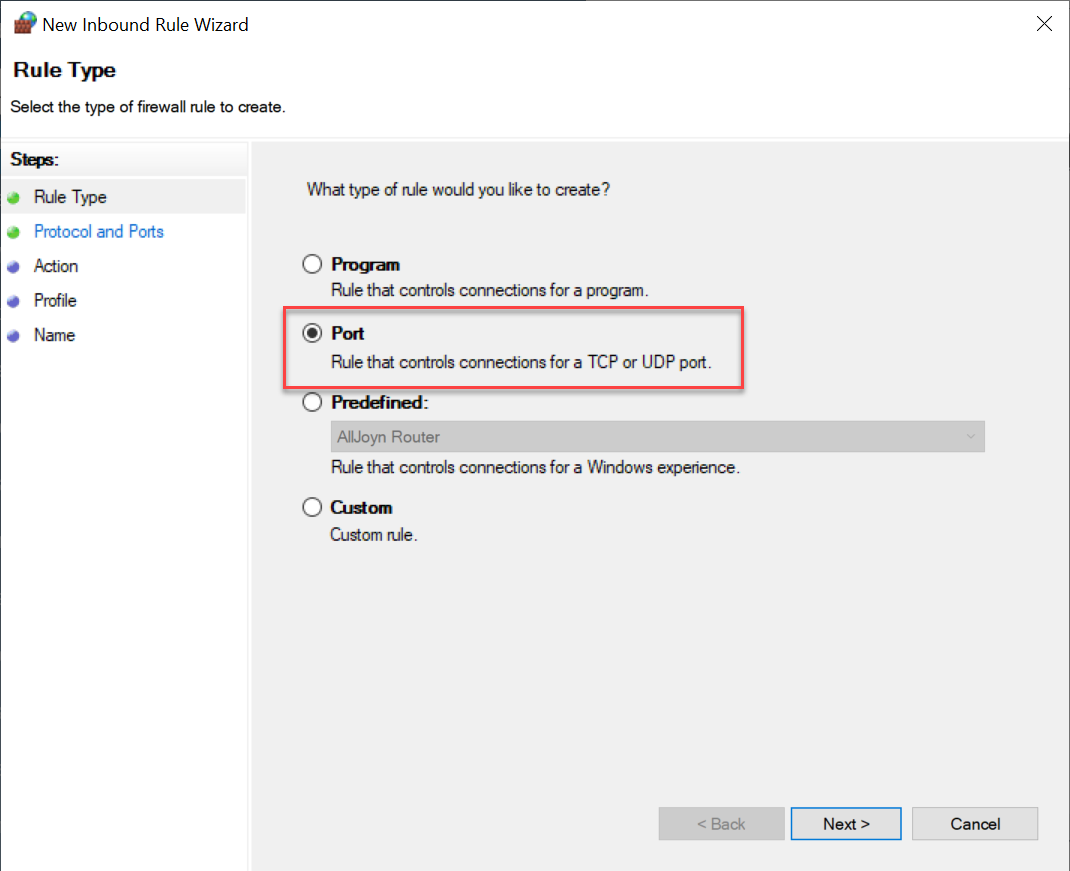

  6. Select Port, and click Next.

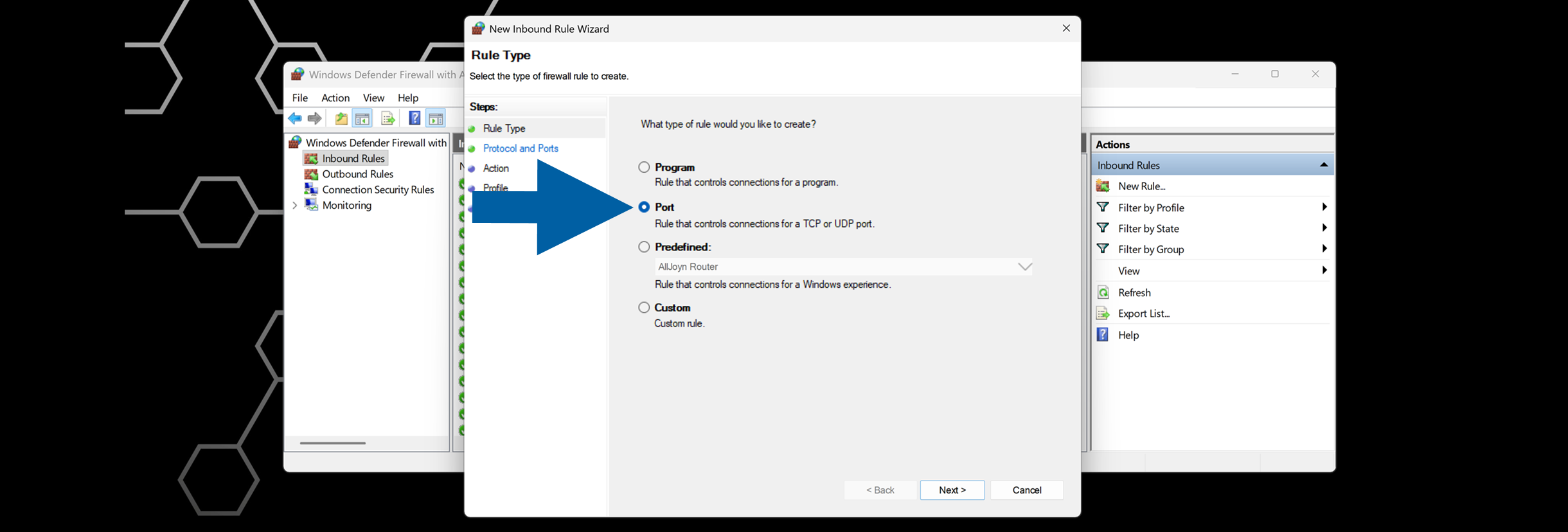

    New Inbound Rule wizard page with Port rule type selected and Next button available

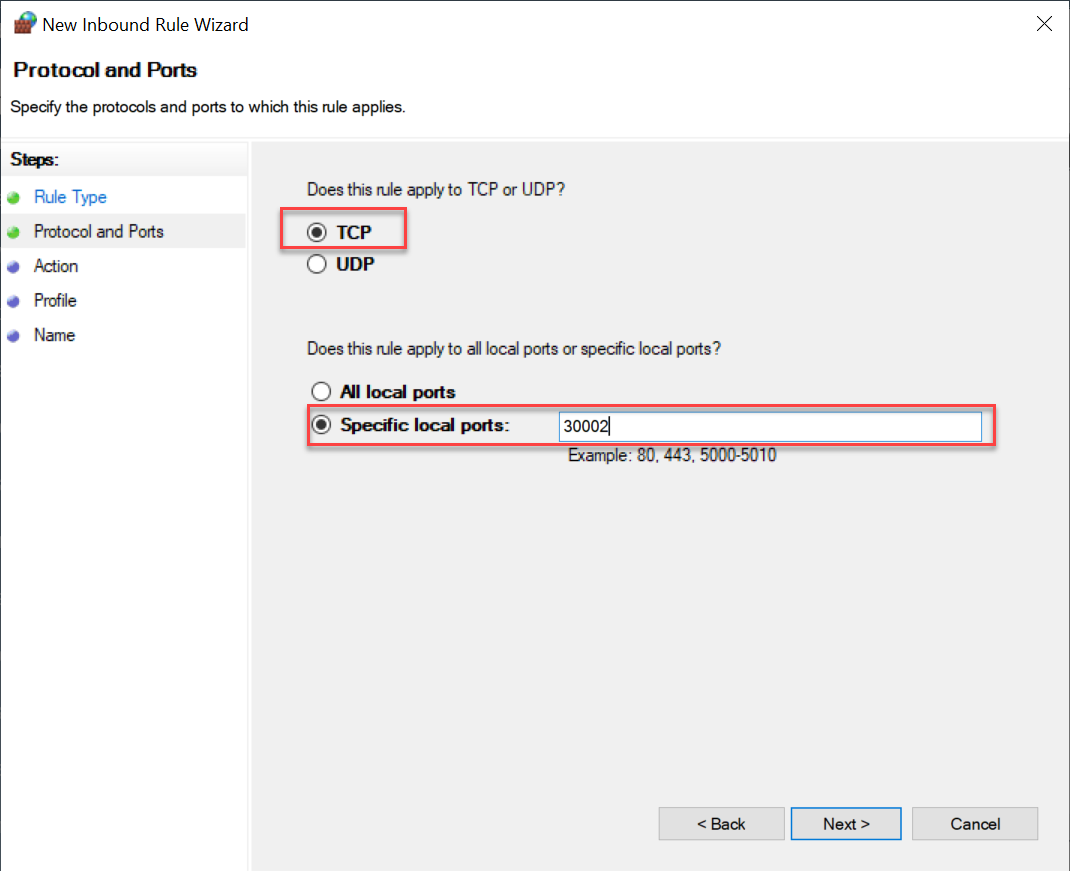

  7. Select TCP.

  8. Enter 30002 in Specific local ports.

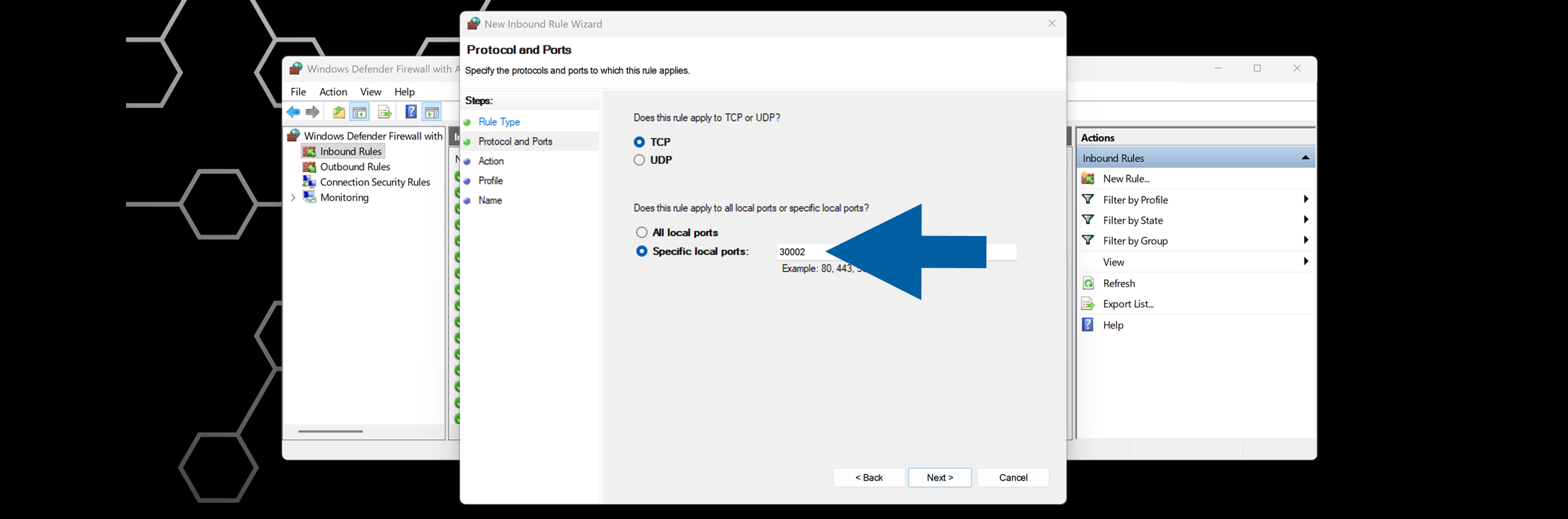

    New Inbound Rule wizard page with TCP selected and specific local ports field set to 30002

  9. Click Next.

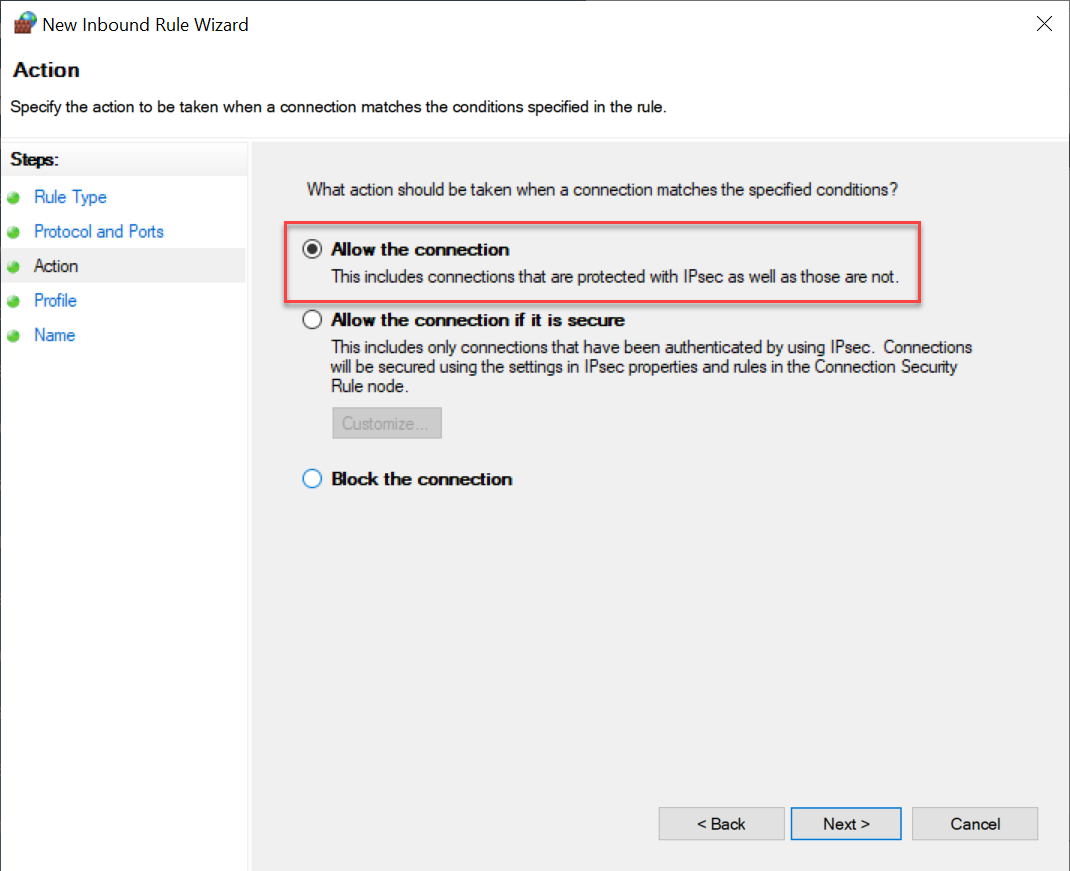

  10. Choose Allow the connection, and click Next.

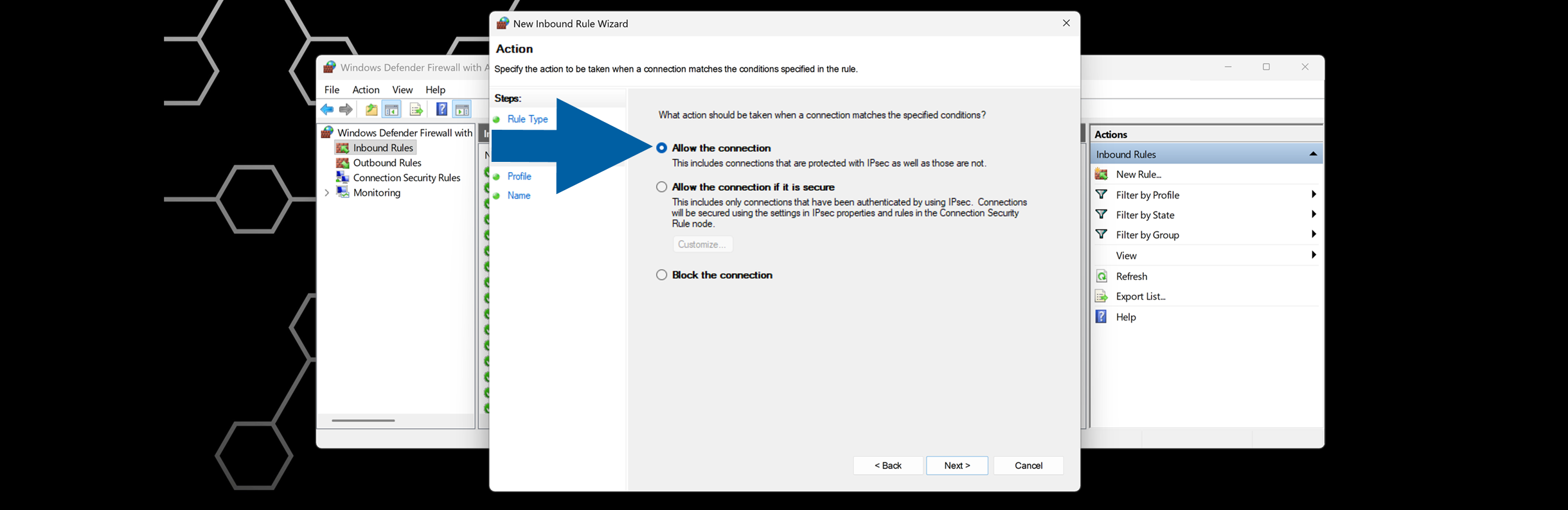

    New Inbound Rule wizard page with Allow the connection option selected and Next button visible

  11. Select all profiles: Domain, Private and Public, and click Next.

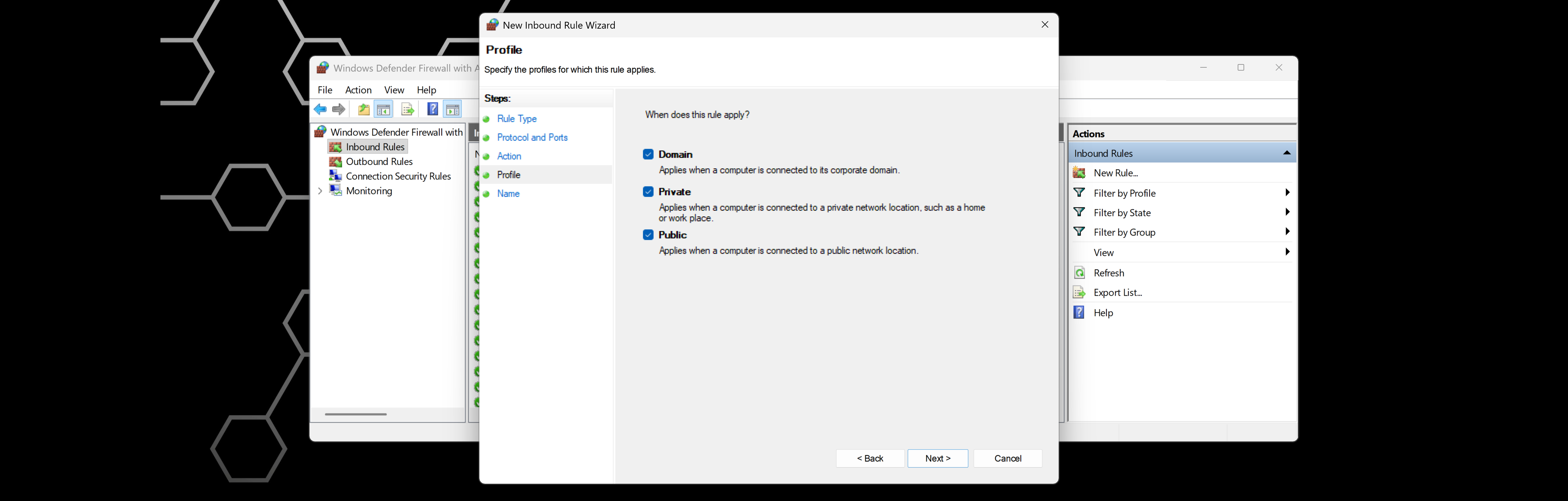

    New Inbound Rule wizard page with Domain Private and Public profiles selected and Next button visible

  12. Enter a name for the rule, and click Finish.

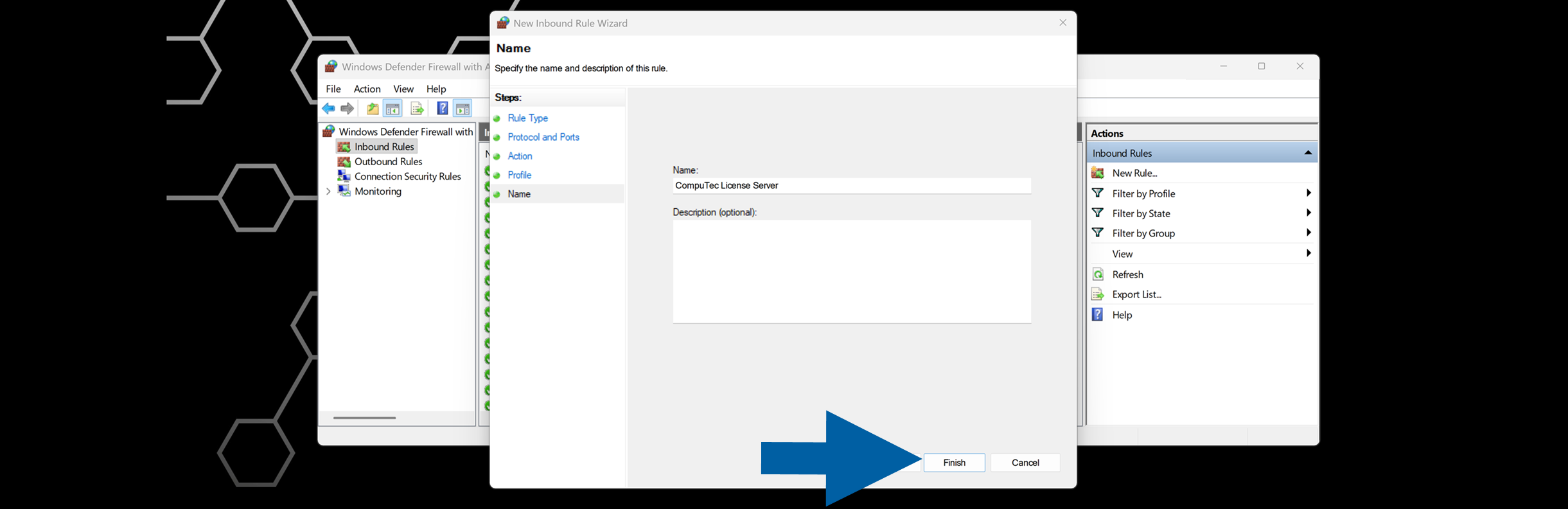

    New Inbound Rule wizard page prompting for the rule name with Finish button ready to complete the setup

Result​

After completing the installation:

  • CompuTec License Server is installed and running.
  • Windows Firewall allows inbound TCP connections on port 30002.
  • CompuTec applications can connect to the CompuTec License Server and validate user licenses.
note

If client applications cannot connect to the CompuTec License Server after installation:

  • Verify that the CompuTec License Server service is running.
  • Confirm that TCP port 30002 is open.
  • Check local and network firewall settings.
  • Verify connectivity between the client workstation and the CompuTec License Server.
