Sort Order Definitions

The Sort Order Definitions feature allows you to control how document lines are displayed in the Document Details window in the WMS client.

By creating sorting templates, you can define custom sorting rules based on specific document properties. This helps users view and process document lines in a logical and operationally efficient order. For example, you can sort lines by completion status, or other available properties, in ascending or descending order.

Once configured, users can select the required sorting template directly in the WMS client.

Settings

To configure Sort Order Definitions, follow these steps:

1. Go to WMS Custom Configuration.

2. Open the Manager tab.

3. Click Load next to Sort Order Definitions.



4. Done! The Sort Order Definitions window displays all available sorting templates.

To create a new Sort Order Definition, follow these steps:

1. In WMS Custom Configuration > Manager , click Load next to Sort Order Definition.

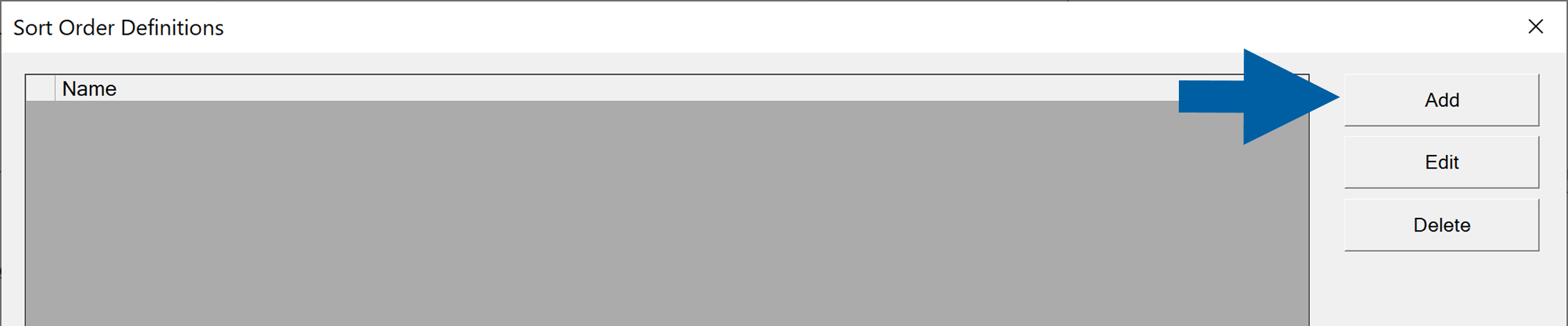

2. Click Add.



3. In the Definition Details section enter Name (this is the name displayed in the WMS client).

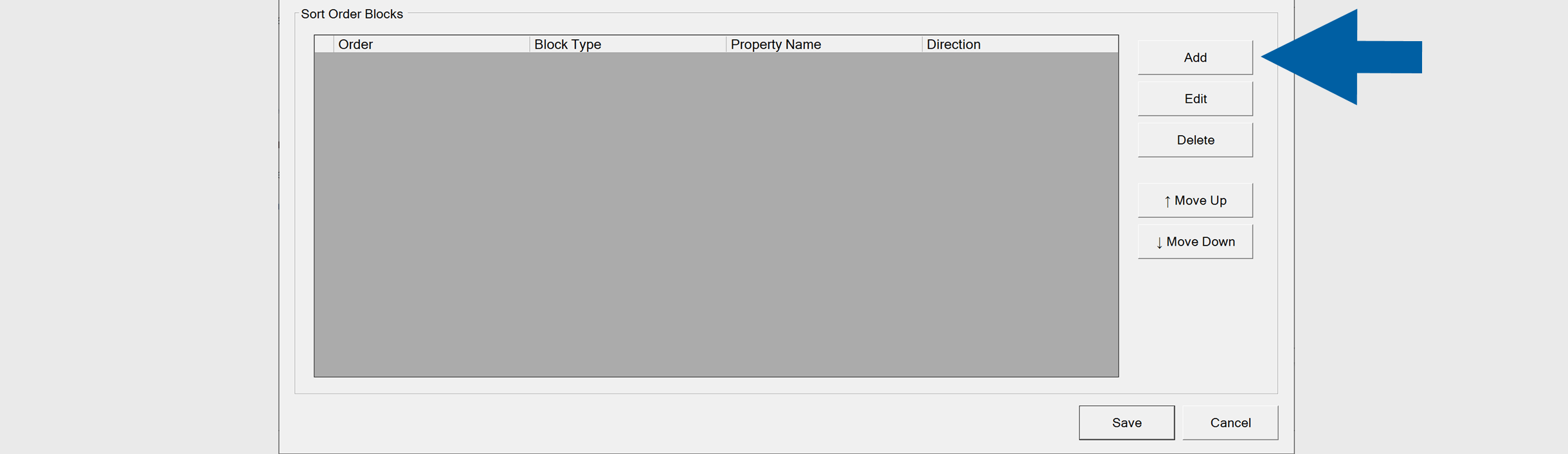

4. In the Sort Order Blocks section, click Add to define a sorting rule.

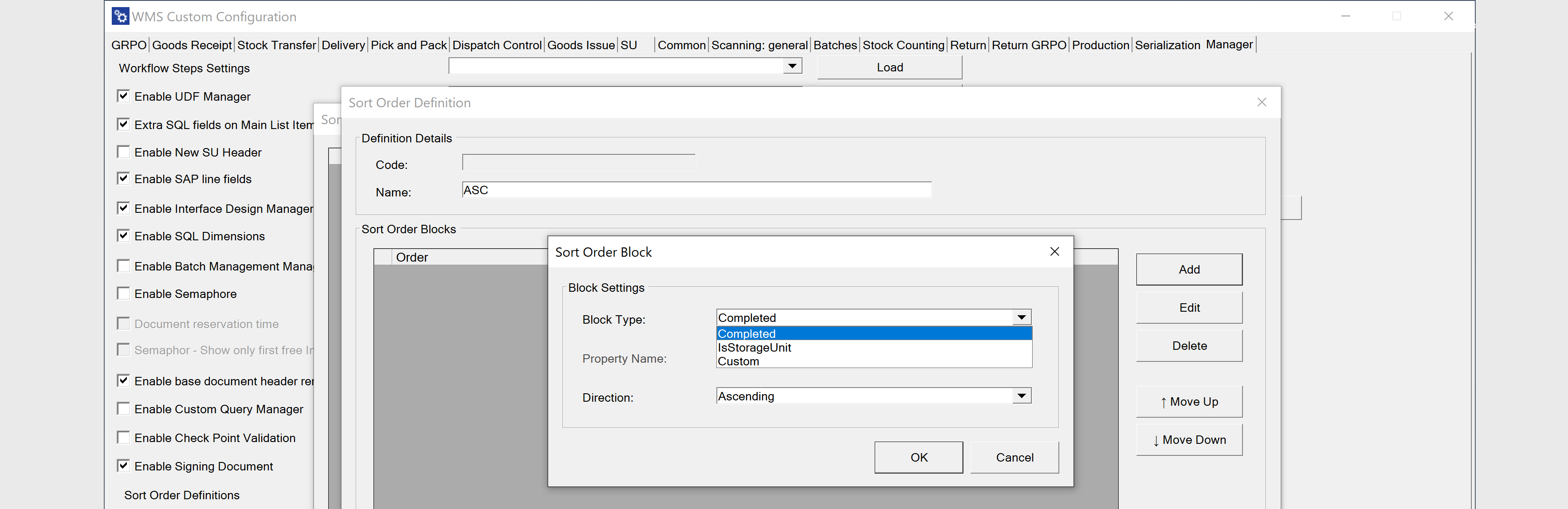

5. In Sort Order Block window, select the following fields:

   • Block Type – Defines the type of data used for sorting (for example, Completed, IsStorageUnit, or Custom).
   • Property Name – Specifies the property to sort by (if applicable).
   • Direction – Select Ascending or Descending.



6. Click OK to confirm the block.

7. Use Move Up or Move Down to adjust the priority of sorting blocks. The order of blocks determines sorting priority (top = highest priority).

8. Click Save.

You can also:

• Use Edit to modify an existing template.
• Use Delete to remove a template.

Usage

Once a Sort Order Definition is created:

1. Open a transaction in the WMS client (for example, Goods Receipt PO).

2. Go to the Document Details screen.

3. Tap More.



4. Select Sort Order Definition. A list of available sorting templates will appear.

5. Select the required template (for example, ASC or DESC). The document lines will immediately be reordered based on the selected sorting rules.



Important Notes

• The sorting behavior depends on the defined Block Type and Direction.
• Multiple blocks allow layered sorting (primary, secondary, etc.).
• If no Sort Order Definition is selected, the default system sorting applies.
